Industrial ultrasonic cleaners for New Zealand, direct from Misonics
Buying in Australia? See industrial ultrasonic tanks and all machines.
Misonics supplies industrial ultrasonic cleaners, chemistry and spares to New Zealand workshops and manufacturers, direct from Melbourne. MSX, EvoSonic, UltraTecno and UltraWash machines are specified by the engineers who write the cleaning process, tested before they ship, and supported across the Tasman.
Benchtop machines plug into a standard New Zealand socket. MSX floor tanks take long parts and full baskets. EvoSonic and UltraTecno tanks take a full cooler, an engine block or a turbine rotor.
Buy your ultrasonic cleaning machine direct from the source
New Zealand buyers deal with us direct. The same people specify the machine, test it, ship it and support it.
Direct from the source
Misonics specifies, imports, tests and supports every machine on this page. You deal with the engineers who set up the process from the first enquiry.
Same machines, same chemistry
The machines and chemistry we supply to Australian workshops. MSX floor machines are made in Australia. See all cleaning chemicals.
Specified to your parts
Technical sales picks the machine, chemistry and cycle from your parts, soils and throughput, then writes the cycle settings down.
Tested before it ships
Every machine gets a four-hour load and cavitation test before it leaves Melbourne.
Spares held in Australia
Transducers and resonator assemblies are replaceable service items. Spares are held in Australia and shipped across the Tasman.
Coolers, pistons and optics, before and after
Parts from real service, photographed as they came in and after the ultrasonic cycle.
Exchanger tube ends. Scale and oil sludge bridged the tubes at the flange face. The same bore after the immersion cycle, with no rodding. See the cooler and exchanger case study.

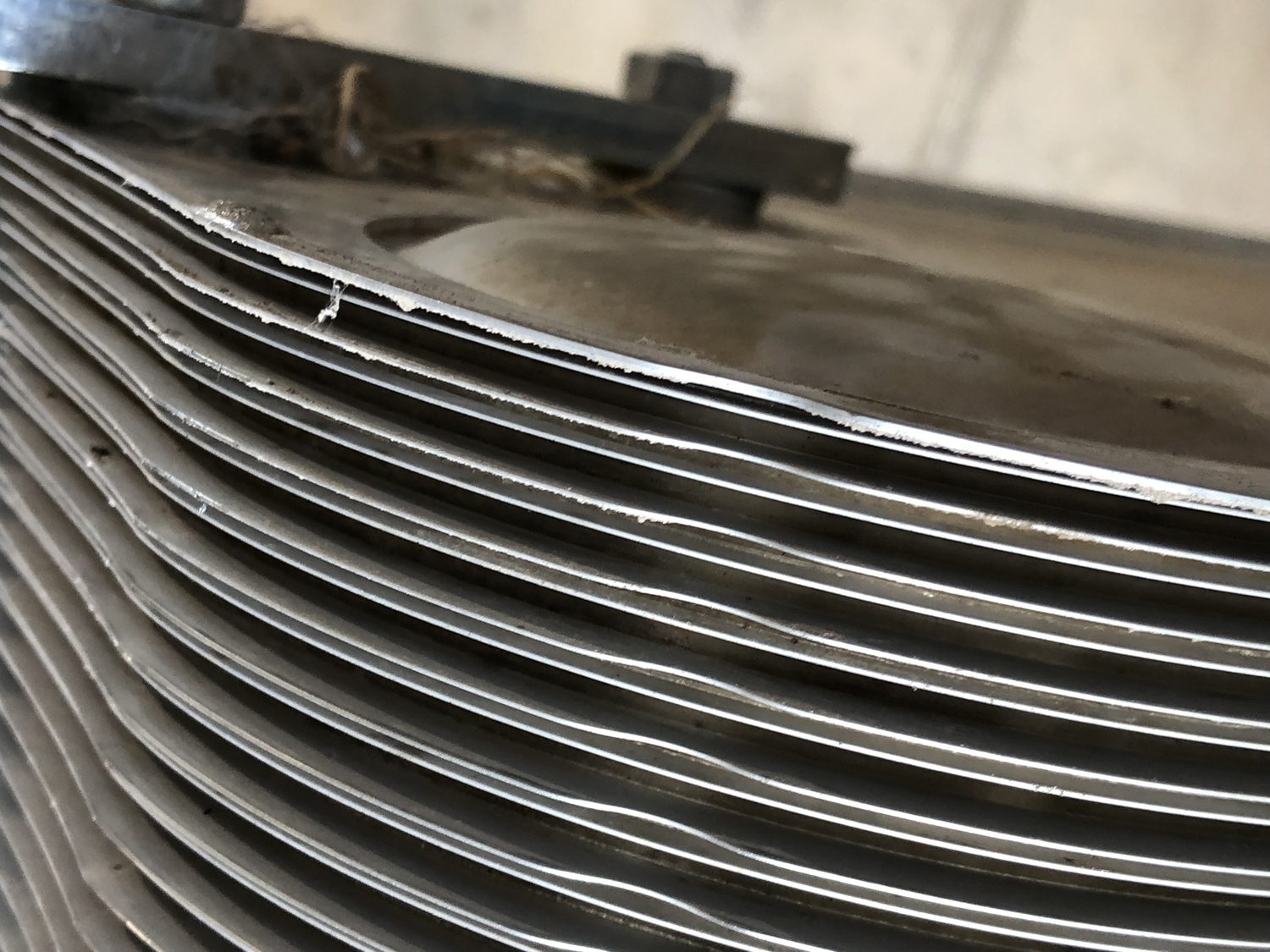

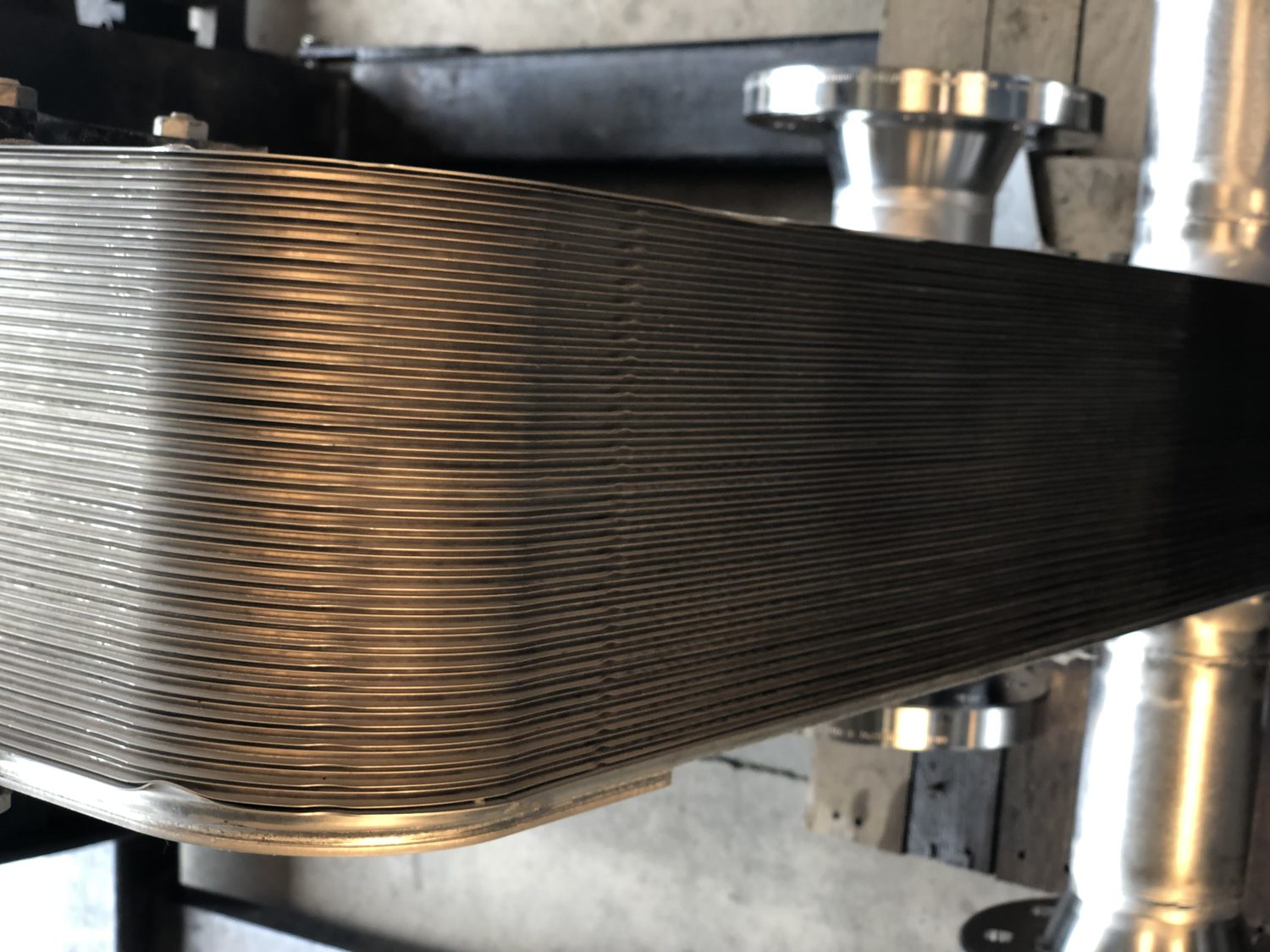

Cooler fin pack. Fouling out from between the fins in one immersion. No pressure washer, so no bent fins.

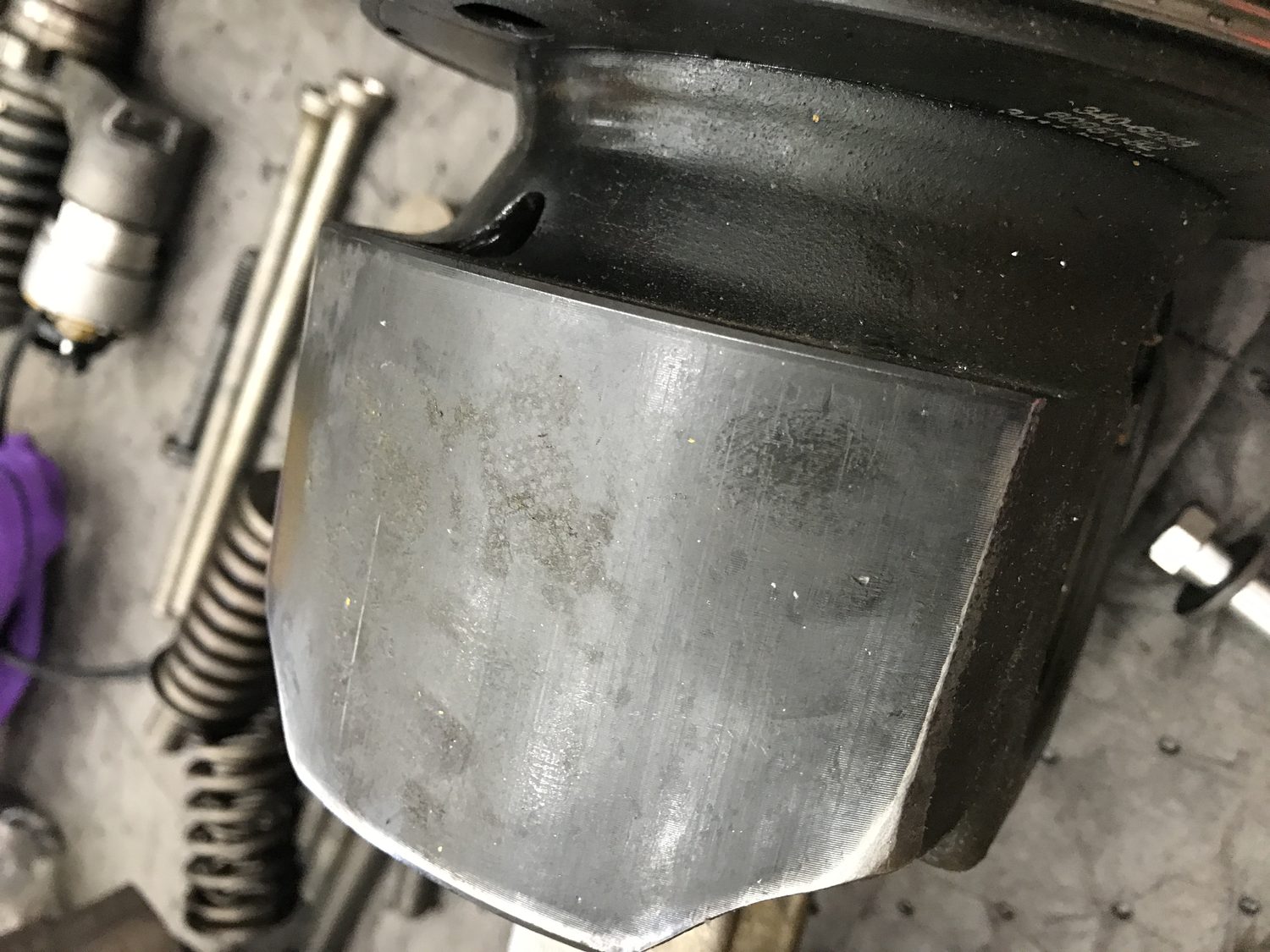

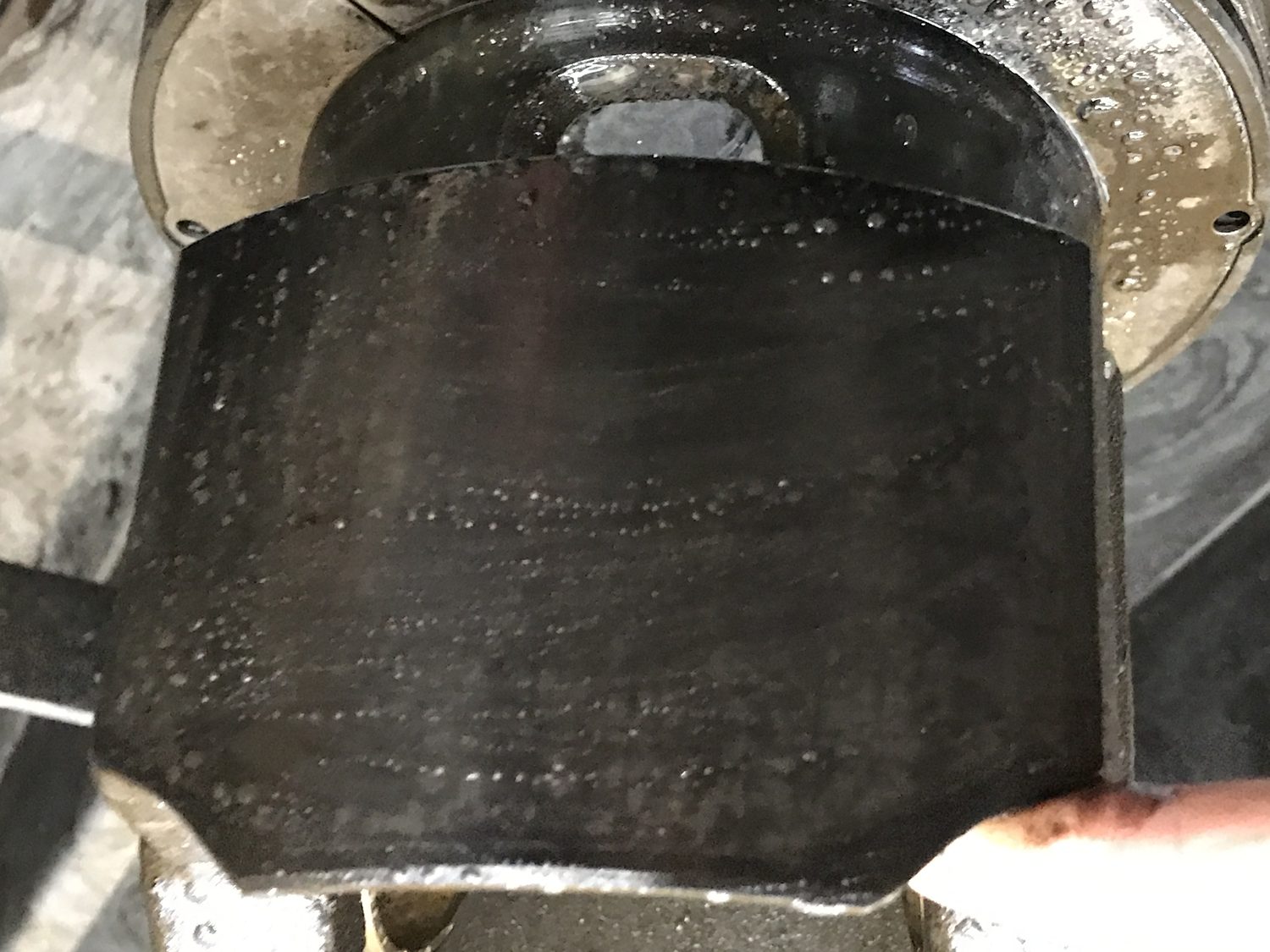

Large-bore diesel piston. Baked carbon off the skirt and crown. Bare aluminium with no blasting, no scraping and no change in size. See piston ring grooves.
Airfield light lens. Tyre rubber, fuel residue and runway dust off the centre optic. Brulin 1696 GD at 20% and 50 °C for twenty minutes, with nothing touching the glass. See the lens case study.
Marine ultrasonic cleaning in NZ
Seawater leaves salt, scale and marine growth on one side of the machinery. Fuel and oil leave carbon and sludge on the other. Marine ultrasonic cleaning reaches both inside the passages, where rodding and pressure washing do not.
Engine and propulsion
Injectors, fuel pumps, turbochargers and cylinder components. Combustion residue off precision fuel hardware. Start with an MSX 30.
Heat transfer
Plate and shell exchangers, charge-air coolers, box coolers and oil coolers. Growth and scale out of the pack in an EvoSonic or UltraTecno tank.
Seawater systems
Pumps, valves and strainers in bronze, copper-nickel and stainless steel. See marine.
Scale and salt come off in Descale. Fuel residue and oil come off in CoreKleen HX or 815 QR-NF. Many coolers need both, in that order. The method is in the cooler and exchanger case study. EvoSonic machines log every cycle, which records the cleaning step for survey.
Ultrasonic cleaning machines for NZ manufacturing
Machined, moulded and printed parts leave production carrying cutting oil, swarf, polishing compound, flux or loose powder. The next step sets how clean they have to be.
Machined parts
Oil and swarf out of blind holes, threads and cross-drillings before coating, bonding or assembly. Production lots run in an UltraWash.
Additive manufacture
Unfused powder out of lattices and internal channels that no brush or air line reaches. See manufacturing.
Electronics
Flux residue off assembled boards in near-neutral chemistry. See the PCB flux removal case study.
Stainless components
Cleaning and citric passivation to AMS 2700 and ASTM A967.
Aerospace components
Brulin chemistry carries Boeing, Airbus and Rolls-Royce approvals. Check the maintenance manual for the cleaning materials approved for each part. See aerospace.
Cleanliness to a number
Where the limit is written down, such as a gravimetric limit or an ISO 16232 particle code, the process is built to meet it. See how cleanliness is measured.
Pick the chemistry by the soil and the metal
Settings below are from each product's technical data sheet. Chemistry is matched to your parts and quoted with the machine. Rinse after every cycle. The full list is on chemicals.
Brulin AquaVantage 815 QR-NF
Grease, oil and carbon off steel, cast iron, aluminium and titanium. Carries Pratt & Whitney approval PMC 1339.
Not for copper, brass or bronze.
Product page →
CoreKleen HX
Oil sludge and fin fouling out of coolers, radiators and exchanger bundles.
Descale
Waterside scale and salt out of coolers, jackets and seawater parts. Runs after the degrease stage.
Never above 60 °C in an ultrasonic tank.
Product page →
Desludge
Carbon and sludge off engine and fuel-side parts. Aluminium is protected at working strength.
Not for zinc, galvanised or magnesium.
Product page →
MetalTek 100
Baked carbon, paint and rust back to bare metal on cast iron heads and steel parts.
Ferrous parts only. Never aluminium.
Product page →
Anti-Rust
Clean iron and steel flash rust while warm and wet. A dip after the rinse stops it.
Industrial ultrasonic cleaner NZ range, sized to the biggest part
Benchtop and floor MSX machines for workshop and component work. EvoSonic tanks for coolers and engines. UltraWash and automated lines for production. UltraTecno ACM tanks for the heaviest parts.
MSX 30
- 650 W at 25/45 kHz
- 490 × 235 mm basket
- 240 V, standard 10 A socket
MSX 140
- 3,000 W at 25 kHz
- 700 × 500 mm basket
- Weir, oil capture and filtration
MSX 240
- 4,500 W at 25 kHz
- 900 × 500 mm basket
- Weir, oil capture and filtration
EvoSonic EVS
- 25 kHz
- Lift platform on every model
- Logged recipes, remote diagnostics
UltraWash
- Three chamber sizes
- Basket rotates through every stage
- About twenty minutes a cycle
Automated lines
- UltraKleen Pro and SonoLine
- Two to four tanks, set at order
- A saved recipe on every basket
The MSX 15 suits small parts on a bench. The MSX 50, MSX 70 and MSX 150 run on single-phase power. In-line lines are UltraKleen Pro and SonoLine. Parts outside every table go to a custom build.
UltraTecno heavy-duty ultrasonic cleaners for New Zealand
Misonics represents UltraTecno in Australia and supplies the ACM range to New Zealand. Every model runs at 28 kHz and has a pneumatic platform lift that moves the load while it cleans.
ACM-350N to ACM-1000N
- 3 to 7 kW at 28 kHz
- Lift carries 250 to 800 kg
- Platform loads at bench height
ACM-2000N to ACM-3000N
- 9 to 12 kW at 28 kHz
- Lift carries 1,000 kg
- ACM-3000NW wide tank for bulky parts
ACM-4500N and ACM-5500N
- 15 kW at 28 kHz
- Lift carries 1,800 kg
- 400 V three phase and neutral
UltraTecno build in Valencia and give every machine a two-year manufacturer's warranty. LFS oil separation skims oil off continuously, so the bath lasts months instead of weeks. Supply is 400 V three phase and neutral. Under 400 L we usually quote an MSX instead. Full figures are on the UltraTecno page. Compare every large tank on industrial ultrasonic tanks.
How an order to New Zealand runs
Tell us the parts, the soil and the throughput. Photos help.
Technical sales picks the machine, the chemistry and the cycle.
Machine, baskets, chemistry and freight to New Zealand in one quote.
The machine is filled, run and tested in Melbourne.
Freight to your port or your door, as quoted.
On site or by video, quoted with your order. Cycle settings written down for your operators.
Supplied from Melbourne, run in New Zealand
New Zealand's 230 V, 50 Hz supply and plug match Australia's. Benchtop machines plug straight in.
MSX machines are designed to the joint Australian and New Zealand standard.
MSX 140, MSX 240, EvoSonic, UltraWash and UltraTecno run on three phase. We check your site supply before you order.
To your port or your door, priced in the same quote.
Phone and video. Connected machines are read and adjusted remotely, so most faults are found without a site visit. Spares are held in Australia.
12 months on MSX and EvoSonic. Two years from the manufacturer on UltraTecno.
Ultrasonic cleaner NZ questions
Where can I buy an industrial ultrasonic cleaner in NZ?
What does an ultrasonic cleaning machine cost in NZ?
Will an ultrasonic cleaner run on New Zealand power?
Which ultrasonic cleaner suits marine work in NZ?
Can you supply UltraTecno machines to New Zealand?
Who supports the machine after it is installed?
Can one machine clean coolers and engine parts?
Can you work to our cleanliness specification?
Is the chemistry approved for aircraft parts?
Related pages
Marine
Exchangers, injectors, pumps and seawater hardware.
Manufacturing
Machined, moulded and printed parts before the next step.
Aerospace and aviation
Engine, hydraulic and airframe parts, with approved chemistry.
UltraTecno ACM
Heavy-duty tanks with a platform lift.
Industrial ultrasonic tanks
Every large tank we supply, side by side.
Coolers and exchangers
Fin side and tube side cleaned in one documented process.
PCB flux removal
Flux off, ionic test passed, ready for coating.
Specification checklist
What to send us so the machine is sized right.
Papua New Guinea
Machines for mine sites, hangars and marine shops.
Solomon Islands
Machines for mine, power station and marine workshops.
What are you cleaning?
Tell us the parts, the soil and the throughput. We will come back with a machine, a chemistry and a delivered price to New Zealand.
