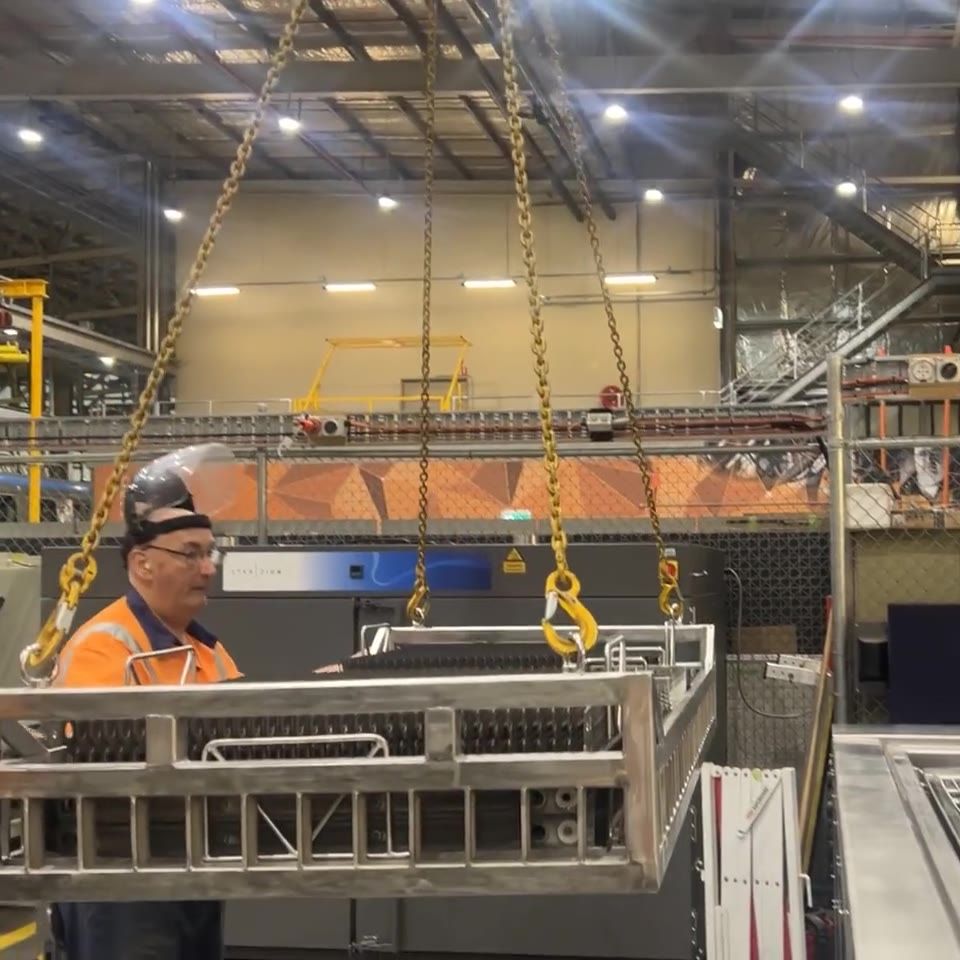

Operator lowering a loaded basket into an EVS 1500 industrial ultrasonic tank at a Melbourne rail depot
EVS 1500 in daily service at a Melbourne rail depot
Home / Machines / Industrial ultrasonic tanks
Industrial ultrasonic tanks · Australia

Industrial ultrasonic tanks for workshop, mine and plant parts.

Engine parts, brake and traction gear, heat exchangers and filters. Each tank is sized to your part, your soil and how many you clean a day.

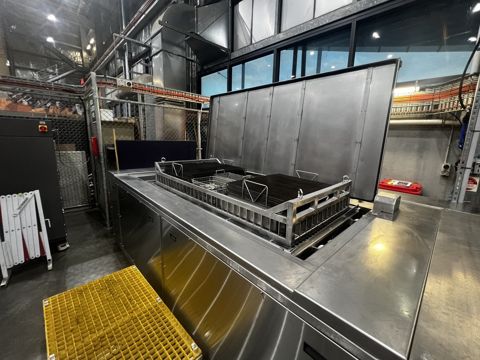

Misonics MSX 15 benchtop ultrasonic tank, lid open with basketBench · 15 & 30 LFrom $4,367 inc GSTSee the bench tanks → Misonics MSX 50 floor-standing ultrasonic tank, lid open with basketFloor-standing · MSX 50 to 240Quoted to siteSee the floor tanks → EVS 1500 large ultrasonic tank with a loaded basket on the platformLarge or custom · 180 to 46,000 LQuoted to siteSee the large tanks →

On a real job: an EVS 1500 cleans traction and brake parts at a Melbourne rail depot, one operator, every shift. Watch it run →

Get a price for your partCall 1300 647 664
What they cost

What an industrial ultrasonic tank costs

Where each range starts. All figures include GST.

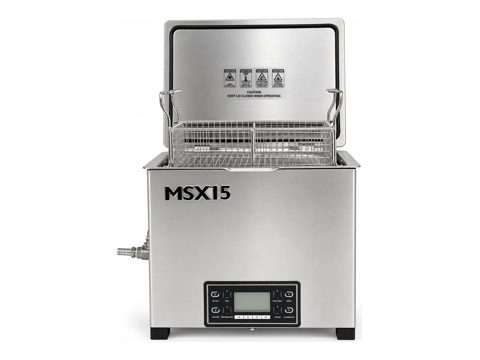

Misonics MSX 15 and MSX 30 benchtop ultrasonic cleaning machines
MSX Benchtop · 15 & 30 L

Light-industrial bench

From
$4,367 inc GST · MSX 15

SS316L tank, 40 kHz, load sensing, ball-valve drain. The dual-frequency MSX 30 is $6,578 inc GST. Suits trade, service and maintenance work that does not need a floor machine.

Both machines, full specs →

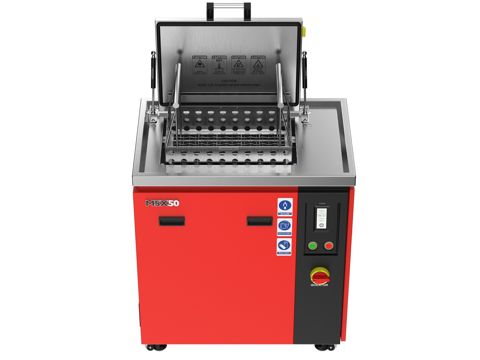

Misonics MSX floor-standing ultrasonic tanks, MSX 50 through MSX 240
MSX Floor-Standing · MSX 50 – 240
★ designed & assembled in Australia

Workshop duty

Price
On application MSX 50 to MSX 240

Five models to 240 litres. 25 kHz, up to 4,500 W, with weir and oil capture on the 140 and 240. Basket capacity for engine components, tooling and production batches. Available for rental on this range, twelve-month minimum term.

Compare the five →
Misonics EVS 7000-PL heavy industrial ultrasonic tank with access platform
EvoSonic EVS · 180 – 10,000 L

Heavy industrial immersion

Quoted to the duty
On application

Optional elevator platform handles the lift, so no one reaches into a hot bath. Up to 136 kW connected. For engine blocks, heat exchangers, filter elements and fabricated assemblies.

See the EvoSonic range →
Large Misonics immersion tank in build, transducer plates fitted to the tank wall
UltraMax HX · 12,000 – 46,000 L

Tube bundle & exchanger tanks

Quoted to the bundle
On application

Built around the heat exchanger bundle. Four working lengths to 12 metres. Priced on the bundle envelope, the duty and the site access.

See the four sizes →

All prices include GST. Machines above the bench range are quoted to site, since the specification is set by the part and the soil. Specifications and pricing are confirmed in writing at quotation.

Specification

What sets the price

Connected ultrasonic powerTwo tanks of the same volume can differ by half a generator. Power is specified against the soil and the part geometry, and it carries into both the purchase price and the running cost.
Frequency and transducer layoutSingle or dual frequency, and where the transducers sit: wall, floor, hung immersibles or rod resonators. Both cost and result change with the layout.
Heating, filtration and drain sequenceA bath that holds temperature and filters its own soil costs more up front and runs longer between changes.
AutomationManual lid, powered lift, or a multi-tank line with transfer. The same tank in three configurations, at three prices. Cycle count decides which one suits.

Power is one variable of several. The result comes from frequency, chemistry and its dilution ratio, temperature, cycle time, how the sonic energy is distributed through the bath, and platform agitation. The tank is one stage of a process, and the stages are specified together with the machine. How the process is built →

Before you specify28 kHz vs 40 kHzWhat temperature to runBlind holes and galleriesWater qualityProving a part is cleanChemical compatibilityComparing cleaners
If you already own a tank

Retrofitting a tank you already own

A soak tank, dip tank or parts washer already has the right shape and holds the chemistry. Adding immersibles gives it cavitation. They hang on the wall or sit on the floor of the vessel, with the generator mounted outside. Cycles that ran overnight commonly come back to minutes.

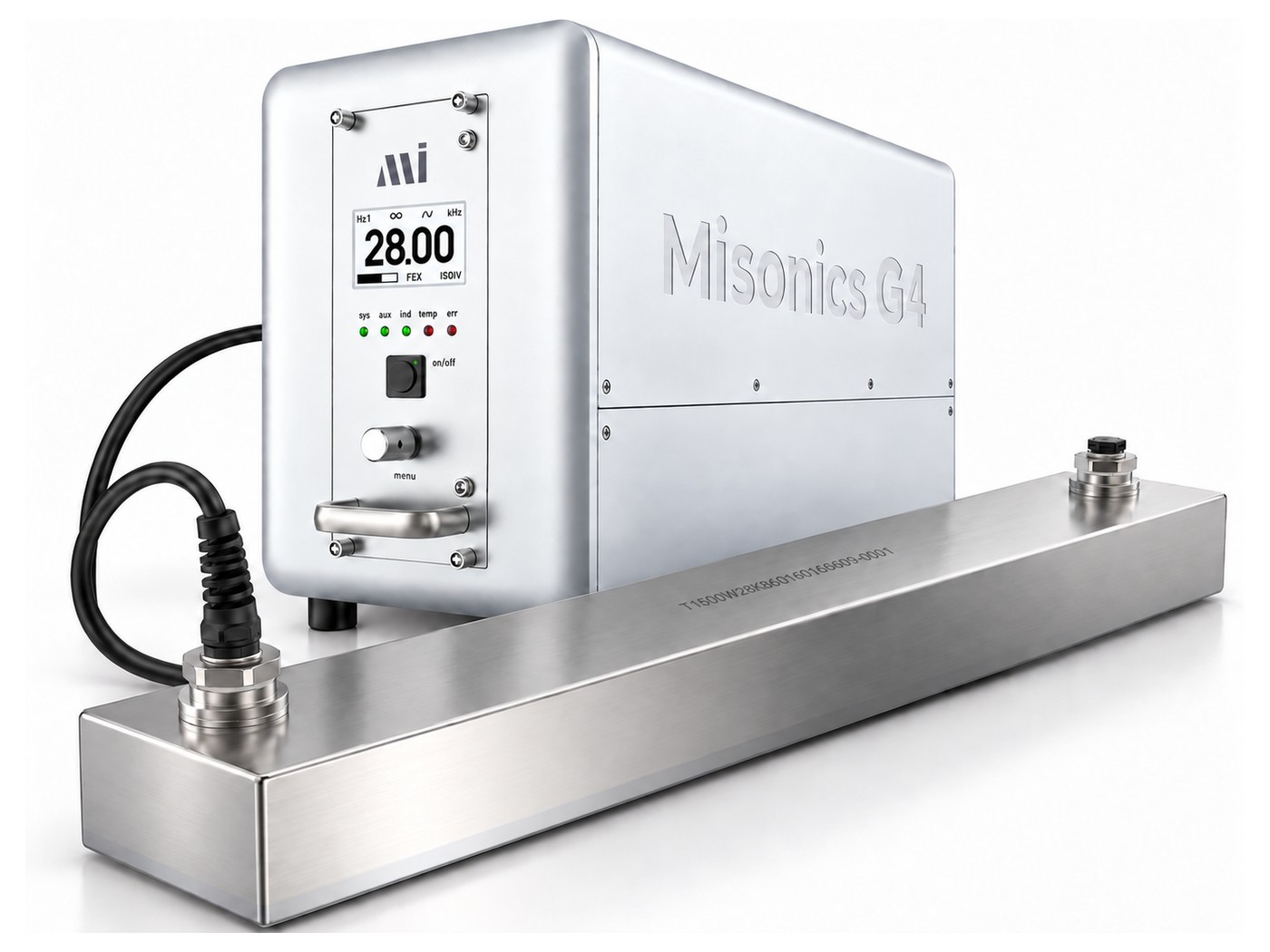

Misonics G4 generator cabled to an immersible transducer box — the Naked Sonics pair
The generator sits outside the tank. The immersible goes in it — on a wall or on the floor of the vessel. Matched as a pair, because the generator has to drive that transducer at its own frequency.

Add ultrasonics to a tank you already own

What it takes, and when it is not suitable.

Naked Sonics — the sonics without the tank

Generator and transducer matched as a pair. Immersibles, plates, 360° rod resonators.
What it does

One cycle, no media, no lance

A mesh candle filter element from a power station recovery program. Same element, same frame, before and after.

Mesh candle filter element blinded with process solids before ultrasonic cleaning
As received
Blinded across the full face. Solids packed into the weave, flow down to a fraction of rated.
The same mesh candle element after ultrasonic cleaning, every aperture open and the wire weave visible
After the cycle
Every aperture open, the wire weave visible, the element flow-tested and returned to service.
The jobPower station filter recoveryPleated mesh elementsFiltration
Proof

Tanks this size, on real jobs

Documented work with the parts, the chemistry, the temperature and the cycle recorded.

Engine blocks and headsRust, carbon and paint stripped from ferrous blocks and heads in a 1–2 hour cycle at 70–80 °C, water jackets included. Radiators and heat exchangersRadiators, air-to-oil coolers and finned-tube exchangers recovered by whole-core immersion. CoreKleen HX plus Descale, flow-tested. Cat 3516B mining engine overhaulTimed test on Cat 3516-series cylinder heads: 15, 30, 45 and 60 minutes in MetalTek 100 at 30%, 70 °C. Power station filter recoveryCandle filters, process filters and demister pads recovered by staged cleaning for a major energy generator, flow-tested per element. Piston ring-groove carbonCoked carbon removed from diesel piston ring grooves in Brulin 815 QR-NF at 70 °C. Zero dimensional change, full process card. Aerospace four-tank lineCooled ultrasonic wash, ultrasonic rinse, IPA dip and air drying in an automated four-tank line for aerospace structures.
MoreAll case studiesBy industryCleaning chemistryCustom builds
Common questions

Buying an industrial ultrasonic tank in Australia

What does an industrial ultrasonic tank cost?

Tanks start at $4,367 inc GST for the MSX 15 light-industrial bench, and $6,578 for the dual-frequency MSX 30. The MSX 50 to MSX 240 floor-standing range is quoted to site, as are heavy industrial immersion and tube bundle tanks. Connected ultrasonic power, heating, filtration and automation affect the figure more than volume does.

Who manufactures industrial ultrasonic tanks in Australia?

The MSX 50 to MSX 240 are designed and assembled in Australia. The heavy industrial and large-format machines (EvoSonic, UltraTecno, UltraMax HX and the sealed-chamber lines) are built by our overseas manufacturing partners and specified, commissioned and serviced by Misonics in Australia. Every machine gets a four-hour load and cavitation test before it ships. Support covers Australia, New Zealand, PNG and Indonesia.

Can I buy an industrial ultrasonic tank outright?

Yes. Machines are sold outright. Benchtop models are listed; the floor-standing, EvoSonic and UltraMax ranges are quoted to site. Rental is available on the MSX 50 to MSX 240 floor range on a twelve-month minimum term.

What size tank do I need?

The smallest one your part fits in, with clearance. Oversizing costs on the machine and then again every day on chemistry and power. Send us the part envelope, the soil and the throughput and we will size it from those.

Is there an ultrasonic tank kit for a vessel I already have?

Yes. Immersible transducer packs, plate transducers and 360° rod resonators are supplied as a matched set with the generator that drives them, sized to your vessel. The tank has to be sound, deep enough to keep the radiating face under liquid, and made of something the chemistry suits. We do not supply ATEX or hazardous-area rated units.

How long does delivery take?

Standard floor-standing machines are quickest. Large-format and engineered tanks are built to order, with lead time confirmed at quotation.

Every machine gets a four-hour load and cavitation test before it ships. Support covers Australia, New Zealand, PNG and Indonesia.

Tell us what you are cleaningSee the whole range

See also: How an industrial ultrasonic tank works — a cut-away of every part of the machine, and why the big tanks get rod resonators rather than base-plate transducers.
