Polypropylene mesh

Monofilament polypropylene weave. The absolute-rating option where the chemistry rules out both nylon and polyester

Specification

Polypropylene mesh

Media code	PPMO
Standard size	Size 2 — φ180 × 810 mm, 0.5 m², 17 L
Other sizes	Size 1 (0.25 m², 8 L) · Size 3 (0.09 m², 1.3 L) · Size 4 (0.16 m², 2.5 L)
Ratings	1–2000 micron
Max. temperature	Up to 90 °C
Ring options	Galvanised steel · stainless steel · polypropylene snap ring
Fits	Every housing we supply — see the range

Exact ratings, ring material, surface finish (singed or glazed) and food-contact compliance are confirmed per order against the manufacturer’s current datasheet.

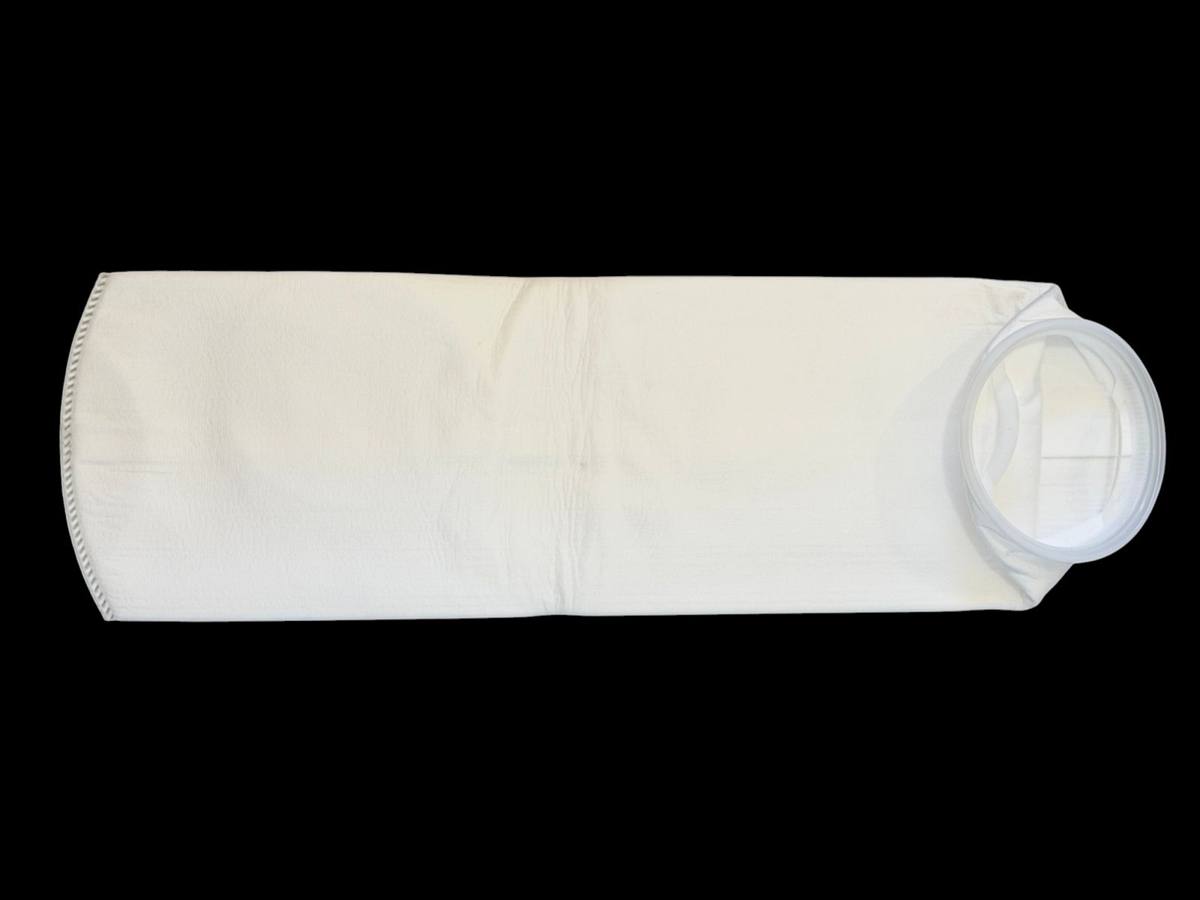

Polypropylene monofilament mesh filter bag

What it is for

Where this media earns its place

Monofilament polypropylene weave. The absolute-rating option where the chemistry rules out both nylon and polyester — broadest chemical resistance of the three meshes.

Typical duties

Aggressive acid and alkali streams, plating, chemical processing.

Chemical & service notes

Broadest chemical resistance of the mesh media. Lowest temperature ceiling.

Temperature

Up to 90 °C. The housing seal has its own limit — the lower of the two governs.

Other media

If this is not the right one

PE felt

Priced per box · volume rates

Bag price moves with media, micron, ring type and quantity, and drops sharply at volume. Tell us the spec and your annual usage for a per-bag rate and a standing-order price. Get bag pricing →

Build it and see the price

Pick the size, media, micron, ring, handles and pack — the configurator gives you a part code, a full specification and a price, with the volume breaks shown. Minimum order a pack of five.

Build & price a bag →

Tell us the duty, not the part number

Flow rate, fluid, temperature, particle size and how often you want to change bags. We size the housing and the bag around that and quote the pair, delivered and commissioned.
