Nylon mesh

Surface filtration through a precise monofilament nylon weave. An absolute rating rather than a nominal one

Specification

Nylon mesh

Media codeNMO
Standard sizeSize 2 — φ180 × 810 mm, 0.5 m², 17 L
Other sizesSize 1 (0.25 m², 8 L) · Size 3 (0.09 m², 1.3 L) · Size 4 (0.16 m², 2.5 L)
Ratings1–2000 micron
Max. temperatureUp to 150 °C
Ring optionsGalvanised steel · stainless steel · polypropylene snap ring
FitsEvery housing we supply — see the range

Exact ratings, ring material, surface finish (singed or glazed) and food-contact compliance are confirmed per order against the manufacturer’s current datasheet.

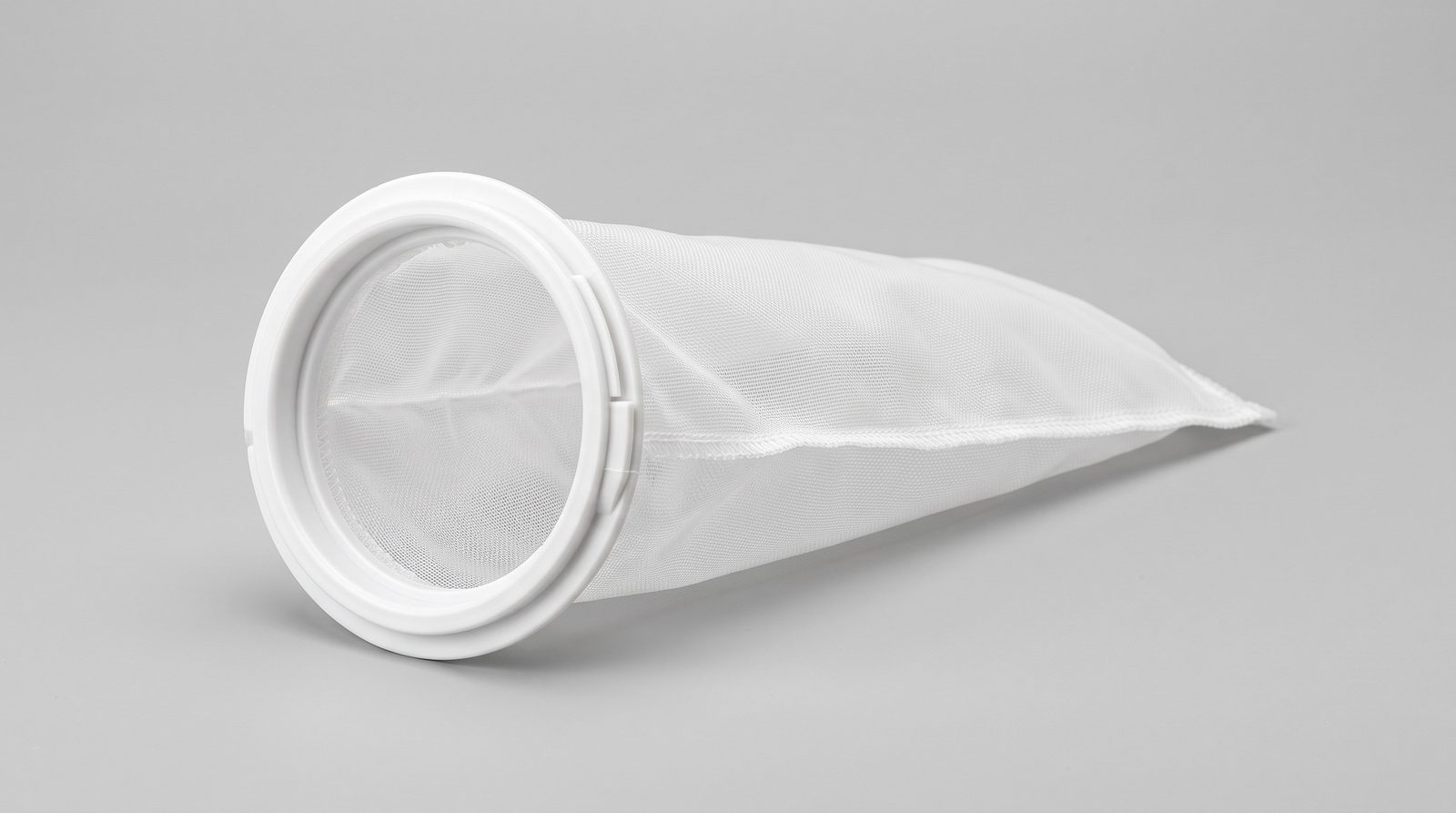

Nylon monofilament mesh filter bag, size 2
What it is for

Where this media earns its place

Surface filtration through a precise monofilament nylon weave. An absolute rating rather than a nominal one — nothing larger than the aperture passes — and the bag can be washed and reused.

Typical duties

Defined cut points, solids recovery, high-abrasion duties, reusable applications.

Chemical & service notes

Strong and abrasion resistant. Good in alkali and most solvents. Not for strong acids.

Temperature

Up to 150 °C. The housing seal has its own limit — the lower of the two governs.
