Liquid Filter Bags | Sizes 1–4 | PP Felt & Nylon Mesh

Industry-standard sizes

Four sizes — pick your bag

Bag sizes 1–4 fit almost every bag-filter housing on the market. Polypropylene felt comes in all four sizes; nylon mesh in sizes 3 & 4 — the food & beverage favourites. Each card opens the full page for that bag — specification, micron ratings, warranty and pricing. Don’t see your size? Contact us.

Size 1 7" × 17"

Dimensions	180 × 450 mm
Filter area	0.25 m²
Max flow (water)	20 m³/h
Material	PP needle-felt
Chemistry	Acids, alkalis & caustic
Construction	Fully welded felt

PP felt — specs & pricing →

Size 2 7" × 32"

Dimensions	180 × 810 mm
Filter area	0.50 m²
Max flow (water)	40 m³/h
Material	PP needle-felt
Chemistry	Acids, alkalis & caustic
Construction	Fully welded felt

PP felt — specs & pricing →

Size 3 4" × 9"

Dimensions	105 × 230 mm
Filter area	0.09 m²
Max flow (water)	6 m³/h
Material	PP felt · nylon mesh
Chemistry	Acids, alkalis & caustic
Construction	Welded felt · sewn mesh

PP felt → Nylon mesh →

Size 4 4" × 15"

Dimensions	105 × 380 mm
Filter area	0.16 m²
Max flow (water)	12 m³/h
Material	PP felt · nylon mesh
Chemistry	Acids, alkalis & caustic
Construction	Welded felt · sewn mesh

PP felt → Nylon mesh →

Flow figures are clean-water maximums per bag — size for 50–70% in service. PP felt: nominal rating, 90 °C, broad pH range. Nylon mesh: absolute rating, washable, 140 °C — confirm strong acids.

Collar options

Two collars fit every housing

P — Polypropylene snap ring (flip-up lift handle)

Moulded PP flange ring with an integral fold-up handle — snaps into the housing restrainer for a crevice-free seal and lifts straight out at change-over. The standard choice for most housings and full plastic-media compatibility.

S — Steel ring

304 stainless steel sewn-in ring for housings designed for metal-ring bags and higher-temperature duties.

Add the collar letter to the part code when ordering — e.g. MFB-PP5-S2-P (PP felt · 5 µm · size 2 · poly snap ring).

Polypropylene snap ring collar on felt filter bag

Bag finder

Build your bag in three clicks

Pick the media, the size and the micron rating — the part code builds itself. Prefer the full matrix? It’s just below.

1 · Media

2 · Size

3 · Micron rating

4 · Collar

Your bag

MFB-PP5-S2-P

View & request pricing →

Sold in lots of 10, lots of 25 and cases of 50. Don’t see your combination? Contact us.

The range

Pick your bag — polypropylene felt

Prefer the table view? Every cell is a stocked configuration — click a part code to open its page. Append collar letter -P (poly snap ring) or -S (steel ring).

Micron	Size 1 7" × 17"	Size 2 7" × 32"	Size 3 4" × 9"	Size 4 4" × 15"
0.5 µm	MFB-PP05-S1	MFB-PP05-S2	MFB-PP05-S3	MFB-PP05-S4
1 µm	MFB-PP1-S1	MFB-PP1-S2	MFB-PP1-S3	MFB-PP1-S4
5 µm	MFB-PP5-S1	MFB-PP5-S2	MFB-PP5-S3	MFB-PP5-S4
10 µm	MFB-PP10-S1	MFB-PP10-S2	MFB-PP10-S3	MFB-PP10-S4
25 µm	MFB-PP25-S1	MFB-PP25-S2	MFB-PP25-S3	MFB-PP25-S4
50 µm	MFB-PP50-S1	MFB-PP50-S2	MFB-PP50-S3	MFB-PP50-S4
100 µm	MFB-PP100-S1	MFB-PP100-S2	MFB-PP100-S3	MFB-PP100-S4

Pick your bag — nylon monofilament mesh (sizes 3 & 4)

Absolute-rated woven aperture, washable. Same sizing and collar options.

Micron	Size 3 4" × 9"	Size 4 4" × 15"
0.5 µm	MFB-NM05-S3	MFB-NM05-S4
1 µm	MFB-NM1-S3	MFB-NM1-S4
5 µm	MFB-NM5-S3	MFB-NM5-S4
10 µm	MFB-NM10-S3	MFB-NM10-S4
25 µm	MFB-NM25-S3	MFB-NM25-S4
50 µm	MFB-NM50-S3	MFB-NM50-S4
100 µm	MFB-NM100-S3	MFB-NM100-S4

Other micron ratings, oil-absorbent media, polyester felt, PE and custom bodies are available — talk to us. Bags pair with our filtration systems and keep an ultrasonic bath working between change-outs.

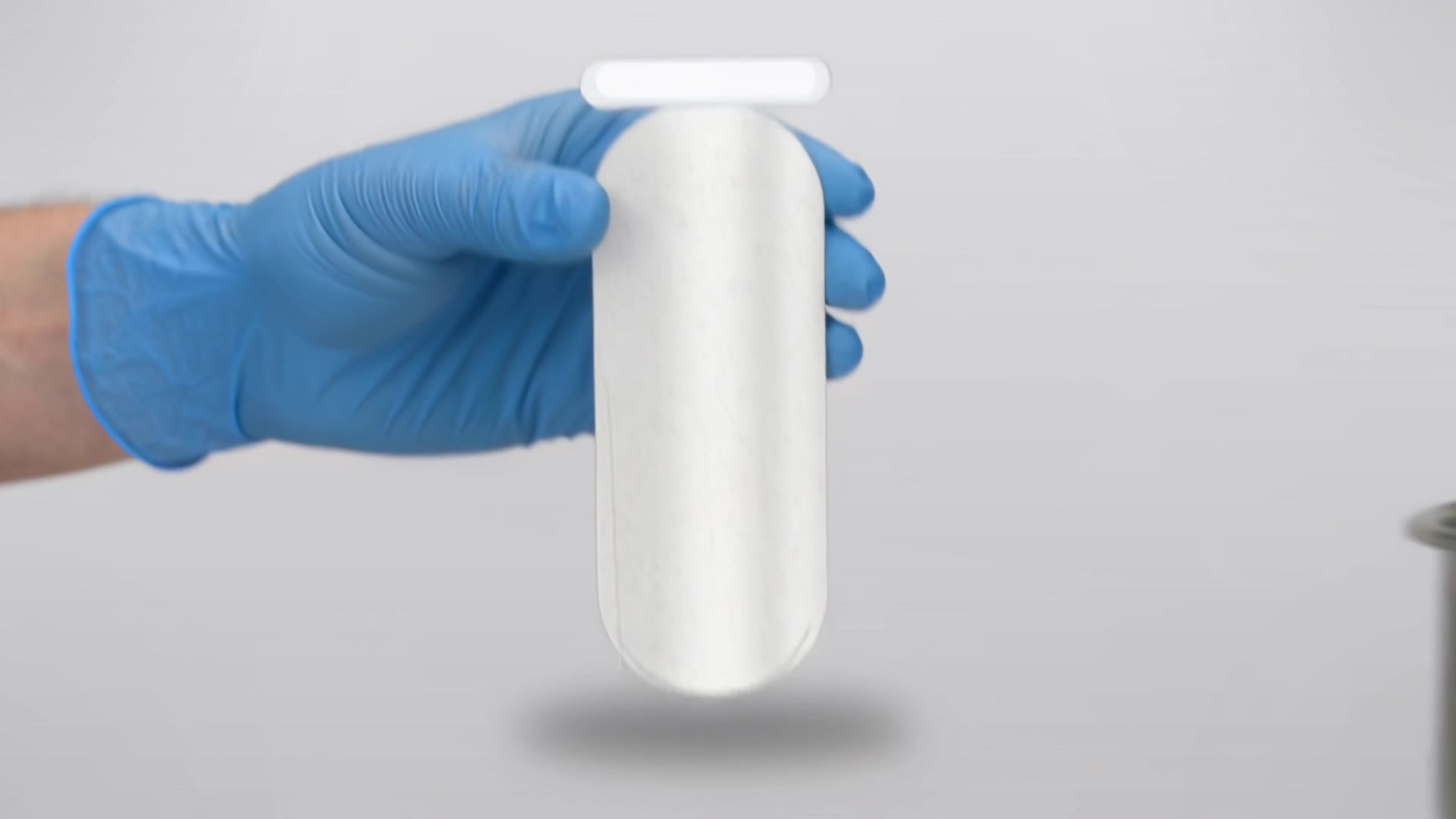

Technician handling a polypropylene filter bag before fitting it to the housing — Change-out is a one-person job with gloves on — no tools, no draining the loop, no spanner work over a hot bath.

In service

The bag defends the bath

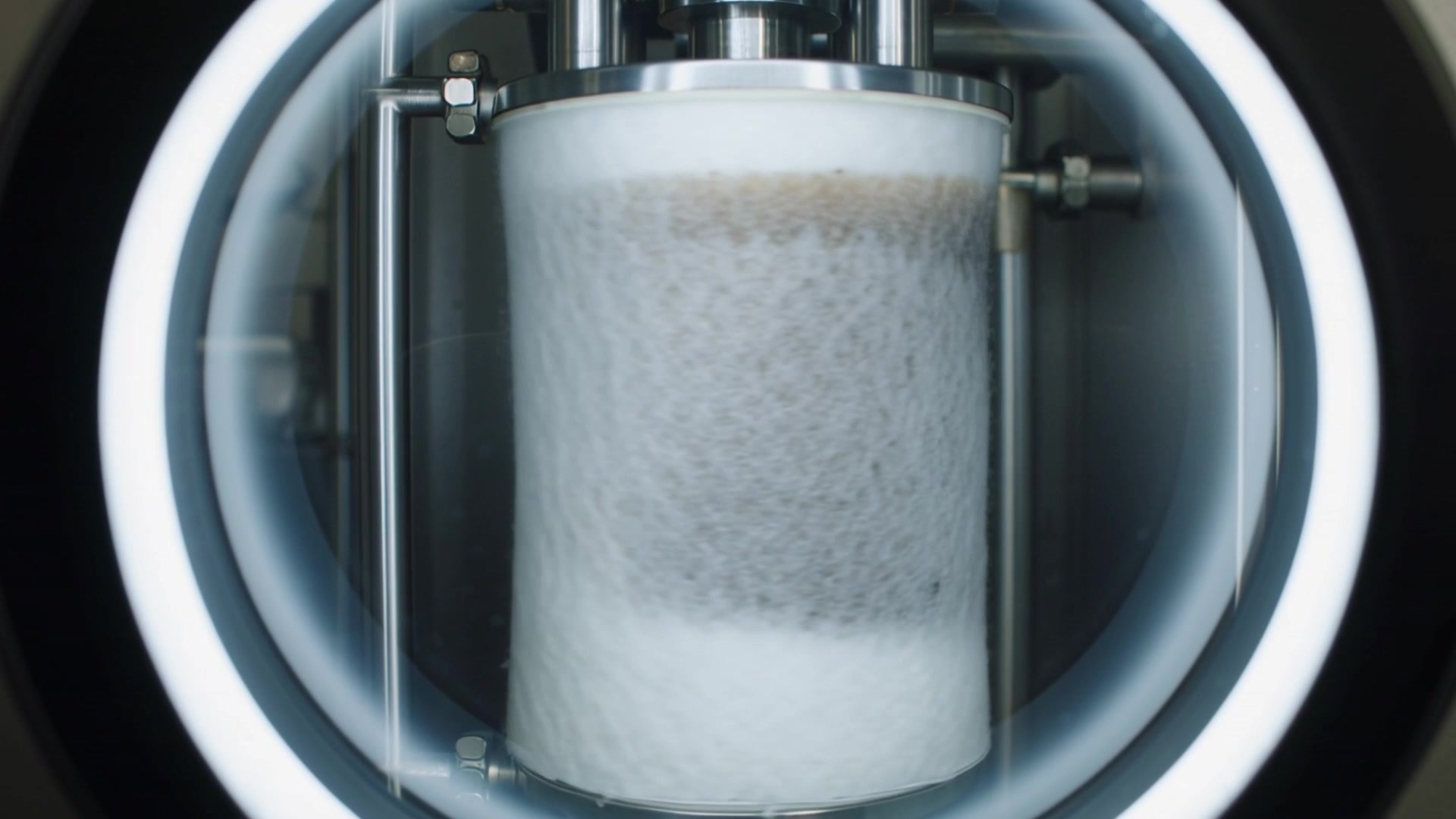

In a filtration loop the bag catches what the ultrasonics strip — continuously. Solids leave through the felt instead of settling in the tank, the chemistry keeps working, and change-out takes a minute: lift the handle, drop the new bag, snap it home.

Running one of our machines? Tell us the model and duty and we’ll spec the bag — size, micron and media — to the loop it feeds.

Request pricing →
