Misonics EVS 1500-PL Heavy Industrial Ultrasonic Cleaner

The plant-scale lift tank · heavy industrial · AS3100 certified

1,550 LSS316 3 mm
18,000 W12 generators · 25 kHz
2000×900platform mm
Motorisedlid, up/down
48 kWconnected
Misonics EVS 1500-PL heavy industrial ultrasonic cleaner — full machine view, lid closed

Photographed in service on a customer trial — this machine, doing this work.

The plant-scale lift tank
Engineered to site — POA

Quoted as a working system: machine, services check, chemistry, baskets, commissioning and first recipes — one number, ex GST.

Every EVS 1500-PL ships with
  • ✓ Elevator platform (agitation optional)
  • ✓ Weir bath defence per model
  • ✓ PLC/HMI · programmable logged cycles
  • ✓ Remote diagnostics gateway
  • ✓ Insulated SS316 tank
  • ✓ AS3100 · 12-month warranty · site commissioning
415 V 3-phase · 28 kW heating · ~48 kW connected
Watch it work

The platform surfaces the load

This is the signature move: cycle done, the pneumatic platform lifts 500 kg out of the bath and holds it there to drain. No crane booking, no slings, no operator over an open tank — parts come to deck height on the machine's schedule.

Filmed on a customer production trial — the parts, the cycle and the result are in the band below.

Radiators & heat exchangers case study →Engine block rebuild case study →All case studies →Industries we serve →

Clips are silent and load only when you press play. All filmed on the same customer trial.

From a live trial

Dirty in, programmed cycle, clean out

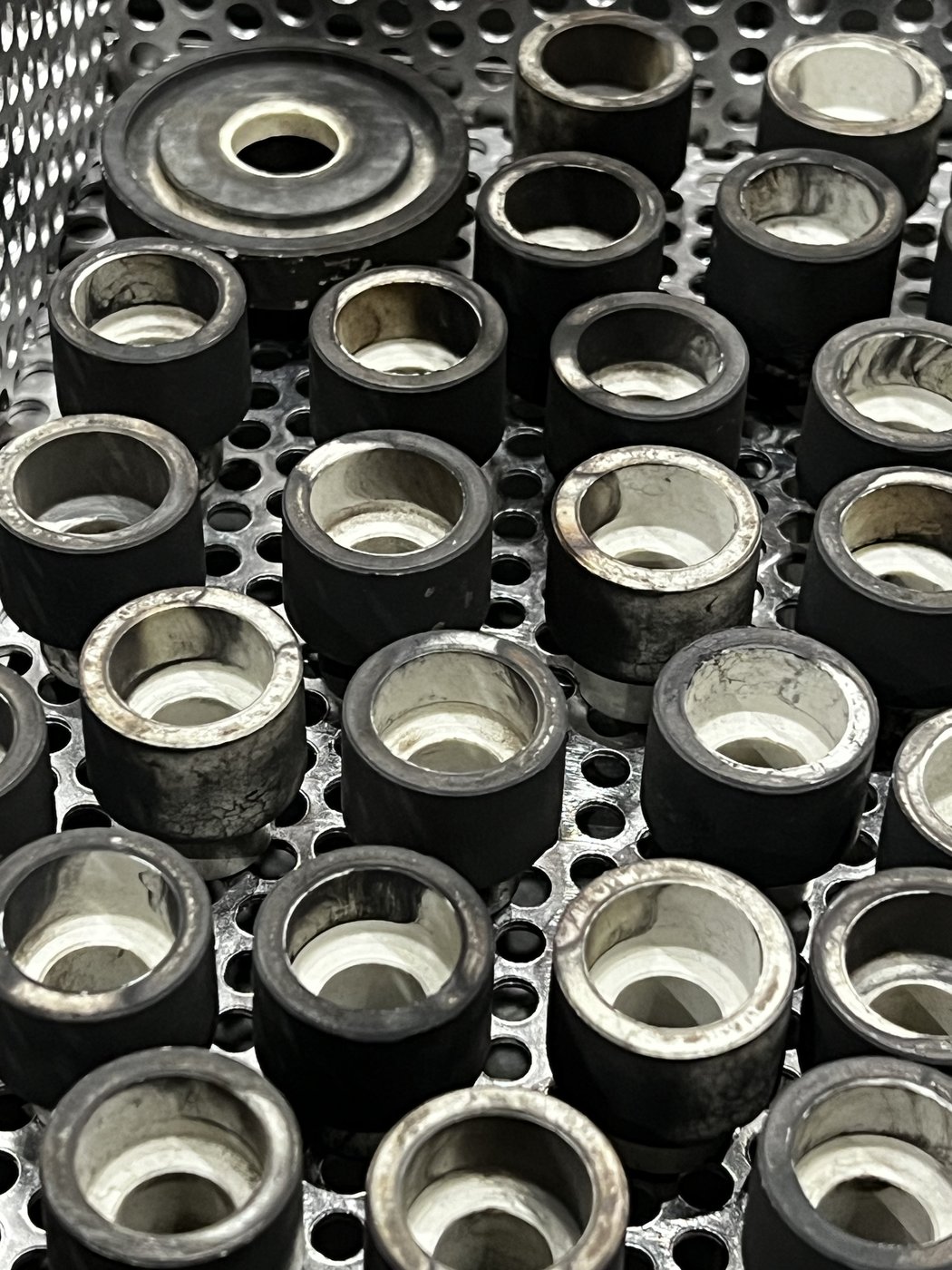

Carbon-fouled components before ultrasonic cleaning
The duty. Carbon-black components off a maintenance program — the soils a wash bay leaves behind.

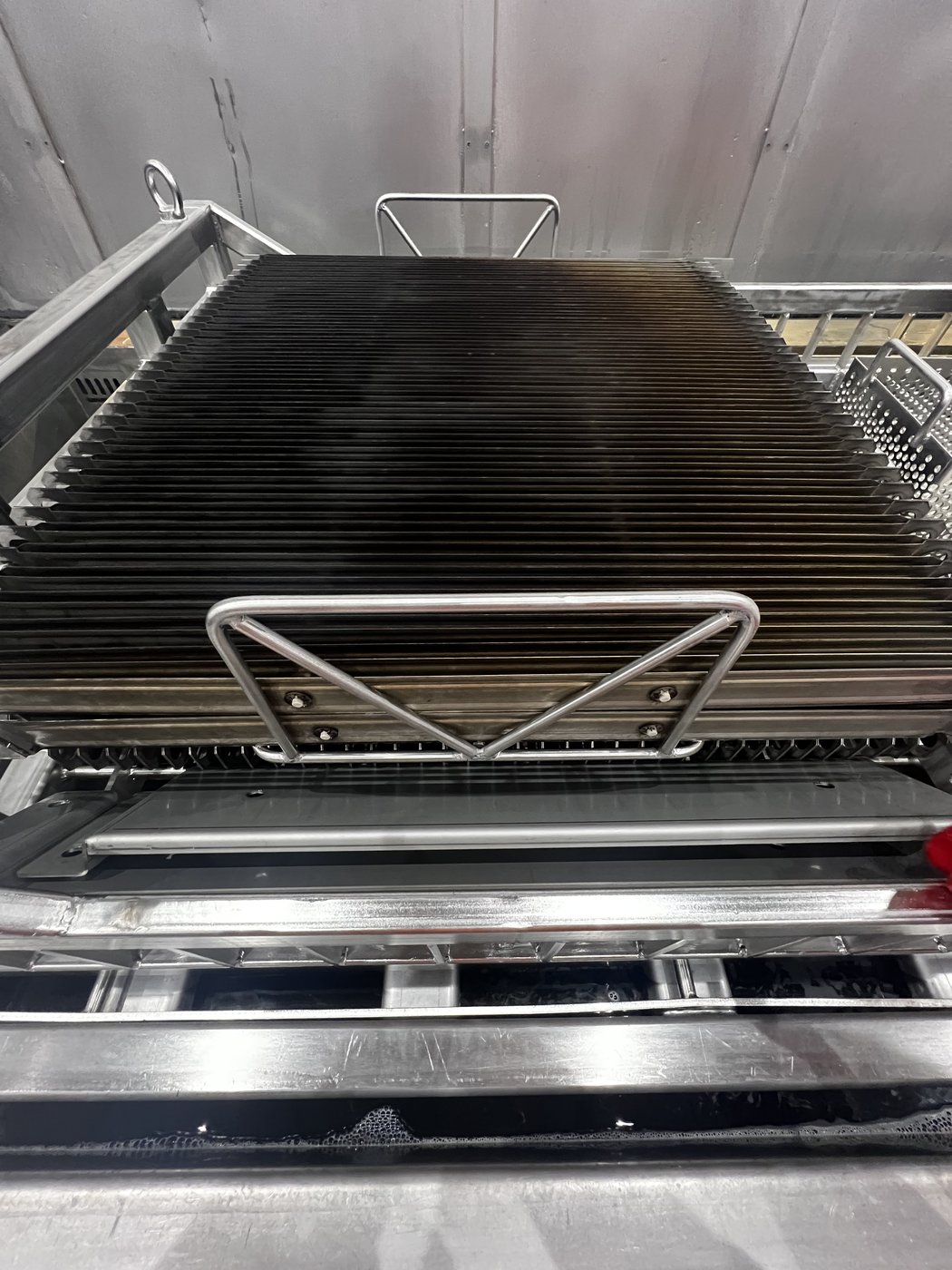

Fouled resistor grid loaded on the EVS 1500-PL platform
The load. A full grid straight onto the 2000 × 900 mm platform — no disassembly, no crane.

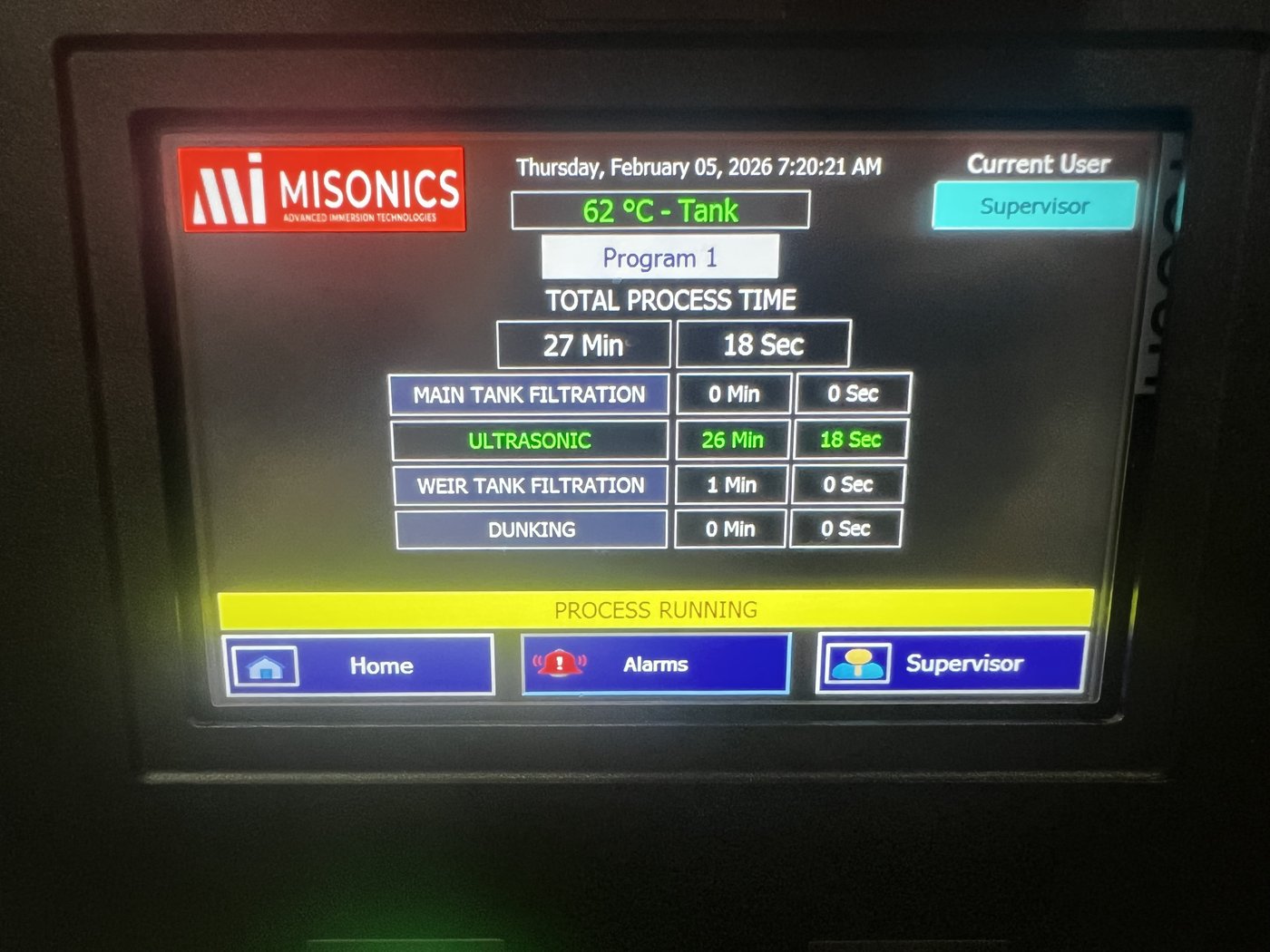

Misonics HMI running Program 1 at 62 degrees
The cycle. Program 1: 62 °C, 26 minutes of ultrasonics, weir filtration and dunking — logged, repeatable, operator-independent.

Photographed during a production trial at a rail maintenance facility. Book the same trial on your parts →  ·  Case studies →  ·  Industries →

Why this machine

Sized and built for heavy contamination

Two metres of powered platform — 2000 × 900 mm — over 1,550 litres: the 1500-PL loads like a machine tool, not a tank. Twelve generators deliver 18,000 watts of 25 kHz, with a 40 kHz build available where finer work shares the duty. The lid is motorised; the platform does everything else.

At 4.1 metres long and 48 kW connected this is plant, and we treat it that way: site survey, services, foundations check, commissioning and operator training in the one quote. HMI/PLC control; weir bath defence.

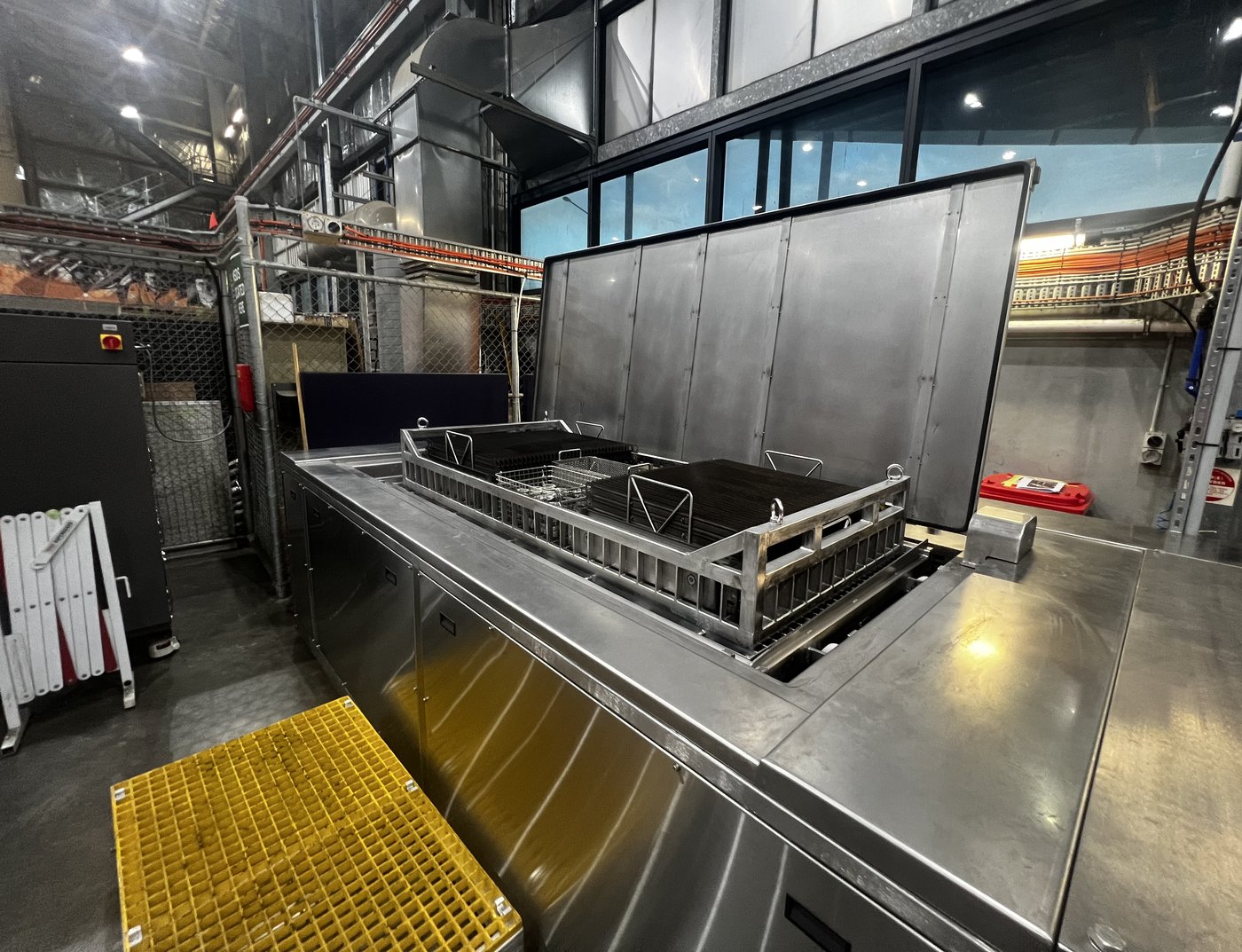

EVS 1500-PL platform raised — loaded baskets draining over the bath
The feature operators talk about

The elevator platform changes how this machine gets loaded

In most factories, lifting a heavy basket into a tank means booking the overhead crane — the most fought-over asset in the building. The EVS platform ends that: parts go on by trolley, forklift or hand at deck height, the platform lowers them into the bath, and the crane goes back to jobs only a crane can do.

It cleans better — with agitation the platform works the load through the field — and it manages parts better: raise to drain, let drag-out run back, unload on the operator's schedule, not the hoist's.

Ask any operator who has run one: the platform is the feature they will not give back.

Applications

What the 1500 is bought for

Engine & driveline rebuilders

Blocks, heads and housings at truck scale — the documented one-immersion strip.

Mining & heavy plant

Final drives, cylinders, undercarriage and GET — wash-bay soils at wash-bay scale.

Heat exchangers & cores

Whole-core immersion for bundles and radiators — see the case study.

Energy & power generation

Turbine hardware, filters and exchangers — the sector page covers the duty.

Machine attributes

The attribute set, from the Misonics library

Elevator platform — no liftingElevator platform — no lifting
Stepless power 10–100%Stepless power 10–100%
SweepSweep
DegasDegas
Heating to 80 °CHeating to 80 °C
Level sensingLevel sensing
Displacement weir + oil captureDisplacement weir + oil capture
Ball-valve drainsBall-valve drains
PLC touchscreen recipesPLC touchscreen recipes
Interlocks & alarmsInterlocks & alarms
Service access + remote diagnosticsService access + remote diagnostics
Programmed cyclesProgrammed cycles

What it does

Why it matters

Drawn from the Misonics operating manual and machine specification.

Where the EVS 1500-PL sits in the process

Ultrasonics and oscillation covered — the next stages are rinse and dry

Misonics cleaning process stages

The EVS 1500-PL delivers the ultrasonics and oscillation stages. We quote the matching rinse tank and drying stage alongside the machine — see the multistage guide.

Chemistry

Approved chemistry

Chemistry rule: these tanks are approved for the declared chemistry at the declared concentration and temperature. Acid chemistry needs an acid-duty specification. Hydrofluoric acid, hydrochloric acid and pickling solutions are not permitted in the tank; acid processes are only possible by indirect cleaning in a chemically inert secondary container, and only with written Misonics approval.
General degrease

FX Degreaser

The daily bath for oils, grease and workshop soils — 5% in water, works from warm.

Product, SDS & TDS →Ferrous carbon & paint

FerroCarb

The heavy-hitter for baked carbon on steel and iron — the chemistry the 1.5 mm SS316 tank was built to hold.

Product, SDS & TDS →Precision & approvals

Brulin AquaVantage 815 GD

Aerospace-approved aqueous for new-manufacture and precision work; 815 QR-NF for MRO carbon.

Product, SDS & TDS →
Specification

Full specification — EVS 1500-PL

CAPACITY & DIMENSIONS
Tank Volume Capacity1550 L
Useful Volume1080 L
Useful Measurement (LxWxD)2000×900×600 mm
Tank – Length2300 mm
Tank – Width1125 mm
Tank – Internal Depth700 mm
Tank – Working Depth600 mm
Weir – Length270 mm
Weir – Width1125 mm
Weir – Height600 mm
Basket – Length2000 mm
Basket – Width900 mm
Maximum Load Capacity500 kg
Overall Unit – Length4100 mm
Overall Unit – Width2170 mm
Overall Unit – Height1850 mm
Machine Weight (Dry)3000 kg
Packaging Dimensions4369 × 2286 × 2032 mm
Tank MaterialSS316 – 3mm
ULTRASONIC SYSTEM
Ultrasonic Power18000 W
Ultrasonic Power Density12 W/L
Ultrasonic Frequency25 (40 optional) kHz
Multi-FrequencyNo — single 25kHz (40kHz optional)
Number of Generators12
Number of Resonators12
Generator SeriesACG (25kHz)
Resonator TypeTube Resonator RS-25 (8×572mm + 4×1045mm)
Power AdjustableYes – 10 to 100%
Auto-TuningYes
HEATING SYSTEM
Heating Power28 kW
Heating Element TypeCeramic Bobbin
Heating Voltage415V AC 3-Ph
Temperature RangeAmbient – 80 °C
Safety ThermostatYes
Insulated TankYes – Nitrile Foam 9mm
FILTRATION & OIL MANAGEMENT
Displacement WeirYes
Oil Capture & RemovalYes
Auto-FillYes – 1" auto fill solenoid
Filter Size7×16" bag, 10 & 50µm
Filter Stage 210 µm
Main Tank Drain2" Auto Butterfly + 2" Manual Ball
Weir Drain2" Auto Butterfly
Oil Drain1" Manual Ball Valve
CONTROL & SAFETY
Control Panel TypeHMI / PLC
Programmable CyclesYes
Stored Recipes4
Level Sensors2
Temperature SensorPT100
Lid TypeAutomated (Motorised up/down)
ELECTRICAL & POWER
Power Supply415V / 50Hz / 3-Ph
Wiring Requirements3P+E+N
Power Cable Provided5-core flexible cable c/w 50 A 5-pin plug
Socket Requirement415 V 50 A 5-pin socket
POWER DRAW
Total kW Load48
Max Power Consumption48000 W
Total Amps Draw63
Circuit Breaker – Full Load80 A
COMPLIANCE & WARRANTY
Machine Warranty12 months
Printed ManualYes
Online ManualYes
Electrical CertificationAS3100

Items marked TBC are being confirmed for publication.

Questions

Before you specify

What does 'heavy industrial' actually buy over the MSX floor range?
Scale and system engineering: multi-generator arrays, PLC/HMI control with logged programmable cycles, remote diagnostics, an elevator platform rated for loads no operator should touch, and factory oil management sized for genuinely dirty duty. An EvoSonic is a small plant, not a bigger tank.
What is the agitating platform option?
The load platform can oscillate through the cycle — the powered version of the oscillation stage in our process diagram. Heavy baskets clean evenly and blind holes flush instead of trapping soil.
How does the oil management work?
Continuously: the displacement weir takes the surface film, oil capture removes it from circulation, the interceptor catches solids, and stainless filtration polishes the bath — so the solution keeps working for weeks, not days.
What is the remote access for?
An industrial remote-access gateway lets our engineers read the PLC, diagnose faults and adjust parameters over the air — most support calls end without a site visit.
What power and services do these need?
415 V three-phase throughout; connected load runs from ~12 kW at the small end to 136 kW on the EVS 7000. Every quote includes a site-services check before anything ships.
Can they be customised?
Yes — the seven standard sizes cover most duties, and the same engineering delivers custom tanks, platforms and integration when they do not. The TM-series custom builds in our archive are this capability at work.
How do we prove it before committing?
Laboratory trial on your parts first; for production-scale proof we arrange staged commissioning with acceptance testing on your parts. No EvoSonic is bought off a brochure.
What comes with them?
Platform, lid, filtration and weir plumbing per model, PLC/HMI with recipes, level sensing, site commissioning with chemistry matched and first recipes loaded — AS3100, 12-month warranty.
Specify & price

Specify your EVS 1500-PL — and get it priced

POA is not a brush-off. Tell us the duty and the options, and what comes back is a real number on a real proposal — machine, options, delivery and commissioning to your site.

1 · The options
Configure the machine

Each choice becomes a priced line. Not sure? Pick “advise me” and we size it from your duty.

2 · The duty
What are we cleaning?

This is what makes the price real — the deposit and the throughput decide chemistry, cycle and filtration.

3 · You
Where the proposal goes
An enquiry, not a commitment. Nothing here excludes rights under the Australian Consumer Law.
Misonics EVS 1500-PL

1,550 L · 18,000 W at 25 kHz · 2000 × 900 mm platform, 500 kg · motorised lid · 28 kW heating · weir + bag filtration · PLC/HMI

What comes back

  • A priced proposal on paper — the machine plus every option you picked, each as its own line
  • The general arrangement drawing for your configuration
  • Delivered and commissioned to your site — services check, freight and installation in the number
  • Lead time in writing
  • A cleaning trial on your parts before you commit, if you tick it

Proven on trial

The photos and video on this page are a production trial at a rail maintenance facility — the same trial we run on your parts before you commit.
