Misonics PS 620 Ultrasonic Cleaner

Click to enlarge

Three-quarter view

The long-part bench

$2,795 AUD ex GST

The longest tank on the benchtop: 500 mm of stainless with a 440 mm basket for the loads smaller tanks turn away… full pitch below.

Or rent — $51/week, 21-day risk-free

In the box

✓ Stainless perforated basket (440 × 250 × 100 mm)
✓ Tank lid
✓ 1 m drainage hose
✓ 3 m power lead, standard plug
✓ Manual · 12-month warranty · AS3100

Download the PS 620 brochure (PDF)

Ships Australia-wide · freight quoted at checkout · spare parts held locally

The difference you cannot see

Industrial BLT transducers — not hobby discs

Every PowerSonic is driven by bolt-clamped Langevin transducers — the same construction as our industrial machines — delivering more real power into the bath and lasting years past the glued disc elements in lookalike tanks. Add swept frequency, a true degas mode and three power levels, and this is a small machine with industrial manners. It is why a PowerSonic outcleans cheaper tanks on day one, and why it is still doing it on day one thousand.

BLT transducer array bonded to the tank underside

At the controls

Set it, lid on, walk away

Timer — to 99 minutes

Five-minute instrument cycles to long soak jobs, unattended.

Heat — to 80 °C, separate control

Thermostat-protected; heat the bath without running sonics, ready for the first basket.

Power — Low / Med / High

Delicate stones on Low, workshop steel on High. Intensity matched to the part, not averaged.

Sweep

Continuously varies the frequency — even cleaning across the basket, no hot spots, kinder to the tank.

Degas

Pulses the drive to purge dissolved air after a fresh fill — full cleaning power from the first cycle.

Drain valve + hose

Bath changes without lifting and tipping — the detail you appreciate weekly.

Accessories

Build it out for the application

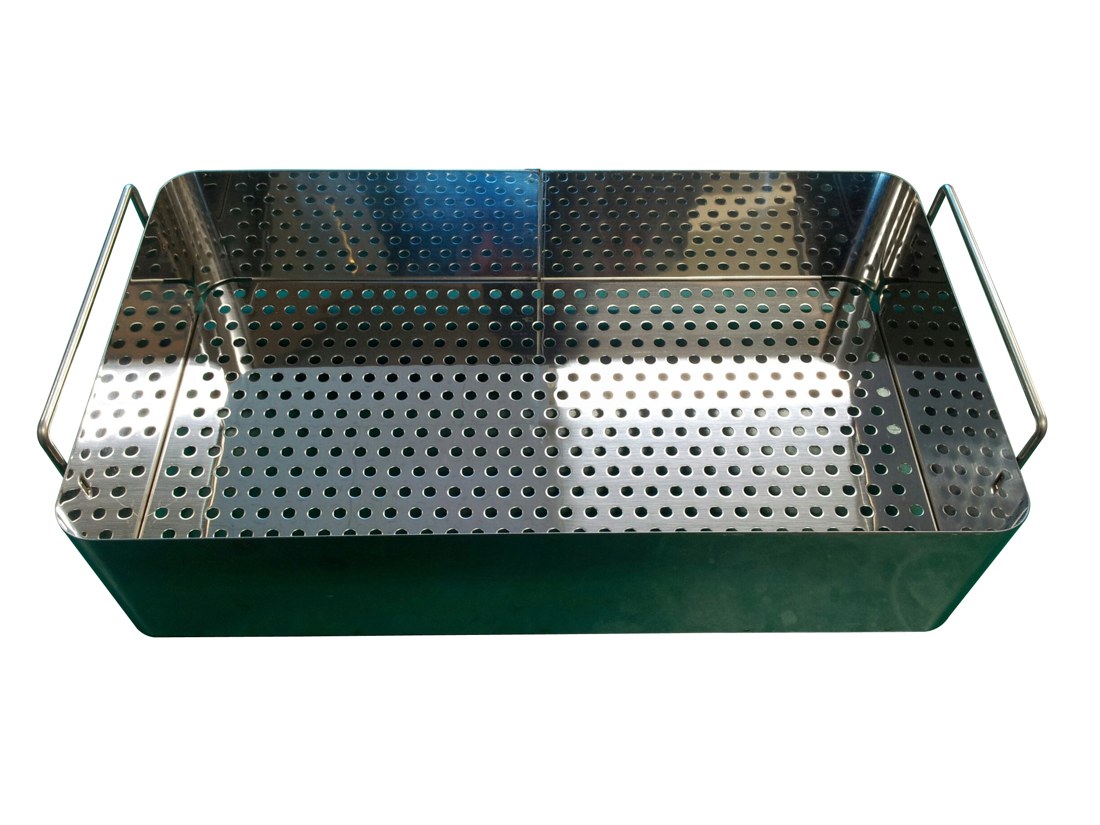

Stainless perforated basket — included

440 × 250 × 100 mm, in the box. Parts always go in the basket, never on the tank floor.

[ Accessory photo —
to be shot ]

Jewellery / parts rack

Suspends rings, chains and small parts individually in the field — no tangling, no shadowing.

[ Accessory photo —
to be shot ]

Small parts basket

Fine-mesh insert for screws, findings, burs and components that fall through the standard basket.

[ Accessory photo —
to be shot ]

Mesh clasp basket

Closable mesh cage for tiny high-value items — nothing escapes into the tank.

Accessory pricing on enquiry.

Chemistry

Approved chemistry — and a hard rule

No caustics. No acids. Ever. PowerSonic tanks are precision benchtop machines — aggressive strip chemistry belongs in the industrial range, not here. The mild aqueous products below cover every approved application.

General degreasing

FX Degreaser

Oils, grease and grime — home workshop, bicycle drivetrains, general parts. 5% in water, works from warm.

Product, SDS & TDS →Medical · dental · veterinary

Brulin 815 GD or Sonidet [Sonidet page to add]

Instrument-grade cleaning for practice reprocessing — supplied in 5 L and 20 L packs sized for clinics.

Product, SDS & TDS →Electronics · jewellery · watches

Electro

The gentle precision detergent — flux and handling soils off boards, skin oils and polish residue out of settings and watch parts.

Product, SDS & TDS →

Specification

Full specification — PS 620

CAPACITY & DIMENSIONS

Tank Volume Capacity20.7 L

Total Solution Volume (incl weir)15 L

Useful Volume11 L

Useful Measurement (LxWxD)440×250×100 mm

Tank – Length500 mm

Tank – Width300 mm

Tank – Internal Depth150 mm

Tank – Working Depth100 mm

Basket – Length440 mm

Basket – Width250 mm

Basket – Wall Height100 mm

Maximum Load Capacity4.5 kg

Overall Unit – Length590 mm

Overall Unit – Width405 mm

Overall Unit – Height275 mm

Machine Weight (Dry)11.8 kg

Machine Packed Weight16 kg

Packaging Dimensions700×540×400 mm

Tank MaterialSS304 – 0.7mm

ULTRASONIC SYSTEM

Ultrasonic Power700 W

Ultrasonic Power Density34 W/L

Ultrasonic Frequency40 kHz

Multi-FrequencyNo

Number of Generators1

Number of Resonators1

Power AdjustableLow/Med/High

Load SensingNo

Degas FunctionYes

Sweep FunctionYes

HEATING SYSTEM

Heating Power0.3 kW

Heating Element TypeSilicone rubber heater pad

Heating Voltage240V AC

Temperature RangeAmbient–80 °C

Safety ThermostatYes

Insulated TankNo

CONTROL & SAFETY

Control Panel TypeMembrane Touch

Programmable CyclesNo

Stored Recipes1

Power InterlockNo

Non-Drip EdgeYes

Lid TypeRemovable Plastic

Remote AccessNo

ELECTRICAL & POWER

Power Supply240V / 50Hz / 1-Phase

Wiring Requirements1P+E+N

Power Cable Provided3 m IEC lead c/w plug

Socket Requirement240 V 10 A 3-pin socket

Over-Current Fuse3 A

POWER DRAW

Max Power Consumption1000 W

Circuit Breaker – Full Load10 A

COMPLIANCE & WARRANTY

Machine Warranty12 months

Printed ManualYes

Online ManualYes

Electrical CertificationAS3100

Specification per the published policy · download the PS 620 brochure (PDF)

Questions

Before you buy

What cleaning solution should I use?

Two rules. First: never plain water alone — it cavitates poorly and cleans worse. Second: never caustics or acids in a PowerSonic — these are precision benchtop tanks, and the approved chemistry list is deliberately mild: FX Degreaser for general degreasing, Brulin 815 GD or Sonidet for medical and veterinary instrument work, Electro for electronics and for jewellery and watch parts. All dose from the bottle at label rates.

Can parts sit on the tank floor?

No — always in the basket. Parts on the floor damp the transducers, wear the tank and clean poorly. The basket suspends the load in the strongest part of the field; it ships in the box.

How long does a cycle take?

Most loads run 5–15 minutes. Heavily fouled parts may take a second cycle or a warmer bath rather than a longer one — temperature does more than time once chemistry is right. The timer runs to 99 minutes for soak-style jobs.

Does it sterilise instruments?

No — and nothing ultrasonic does. It cleans to pre-sterilisation standard: cavitation removes the soil load that would otherwise shield organisms in the autoclave. Clean ultrasonically, then sterilise; that is the compliant sequence.

Will it damage delicate items?

Run delicate work on Low power and correct chemistry. Solid jewellery, most stones, steel and glass are routine. Avoid: soft porous gems (pearls, opals, emeralds with fillers), loose plating and lacquered finishes — ask us if unsure, it is a two-minute phone call.

What are sweep and degas for?

Sweep continuously varies the frequency so cleaning power distributes evenly — no hot and dead spots, kinder to the tank. Degas pulses the ultrasonics to drive dissolved air out of a fresh fill; run it for a few minutes after every water change and the bath cleans at full strength.

Why BLT transducers?

The industrial bolt-clamped Langevin transducers in every PowerSonic deliver more power into the bath and last far longer than the glued disc elements in hobby-grade machines. It is the main reason a PowerSonic outcleans lookalike tanks at half the price — and outlives them.

What's in the box?

Tank lid, stainless perforated basket, 1 m drainage hose, 3 m power lead with standard plug, and the manual. Fill, dose, clean — nothing else to buy on day one.

What about delivery and warranty?

Shipped Australia-wide, AS3100 electrically certified, backed by a 12-month warranty and local support with spare parts held here. Freight quoted at checkout.

The long-part bench

Who buys the 620 — click your trade for the full application guide

Medical & Dental

Veterinary

Electronics Repair

Home Workshop & Bicycle

Industrial BLT transducers — not hobby discs

Set it, lid on, walk away

Build it out for the application

Stainless perforated basket — included

Jewellery / parts rack

Small parts basket

Mesh clasp basket

Approved chemistry — and a hard rule

FX Degreaser

Brulin 815 GD or Sonidet [Sonidet page to add]

Electro

Full specification — PS 620

Before you buy

A machine, matched chemistry and the right basket — that is a working process, not a box.
