Engine blocks: jackets, galleries and faces stripped in one immersion

The single-tank alkaline process that replaces the hot tank, the bead blaster and the scraping bench — documented from proven marine and automotive overhaul work.

6 min readBy Misonics application engineers

Engine rebuilding starts with a block and heads carrying everything a service life deposits: rust, carbon, paint and grease, all of which must be completely gone before machining and inspection. This application study documents the single-tank ultrasonic process that replaces the hot tank, the bead blaster and most of the scraping bench.

Industry

Engine rebuilding · marine · automotive

Components

Cylinder blocks and heads, ferrous

Contamination

Rust · carbon · paint · grease

Machine

Industrial ultrasonic tank, 40 kHz

Chemistry

Heavy-duty alkaline deruster

Cycle

1–2 hours total wash

The contamination

Rust through the water jacket

Corrosion scale in cooling passages no brush or blaster reaches — the soil that decides whether a rebuilt engine runs at temperature or above it.

Carbon and baked oil

Combustion-face carbon and galleries varnished with a service life of oil — the hot-tank soils, without the hot tank’s days-long soak.

Paint and gasket residue

Old paint and bonded gasket material that otherwise costs hours of scraping and abrasive attack on machined faces.

The process

Process diagram

Parameter	Value
Chemistry	Heavy-duty alkaline deruster, 15–20% typical; as low as 7% proven in marine overhaul
Temperature	70–80 °C
Frequency	40 kHz
Cycle	1–2 hours total wash time
After-treatment	Rinse + anti-rust dip inside the flash-rust window
Materials note	Ferrous only at this strength — aluminium components run an inhibited chemistry instead

Piston skirt and crown. Baked carbon on the left, bare aluminium on the right — no bead blasting, no scraping, no dimensional change. Drag the handle across to compare.

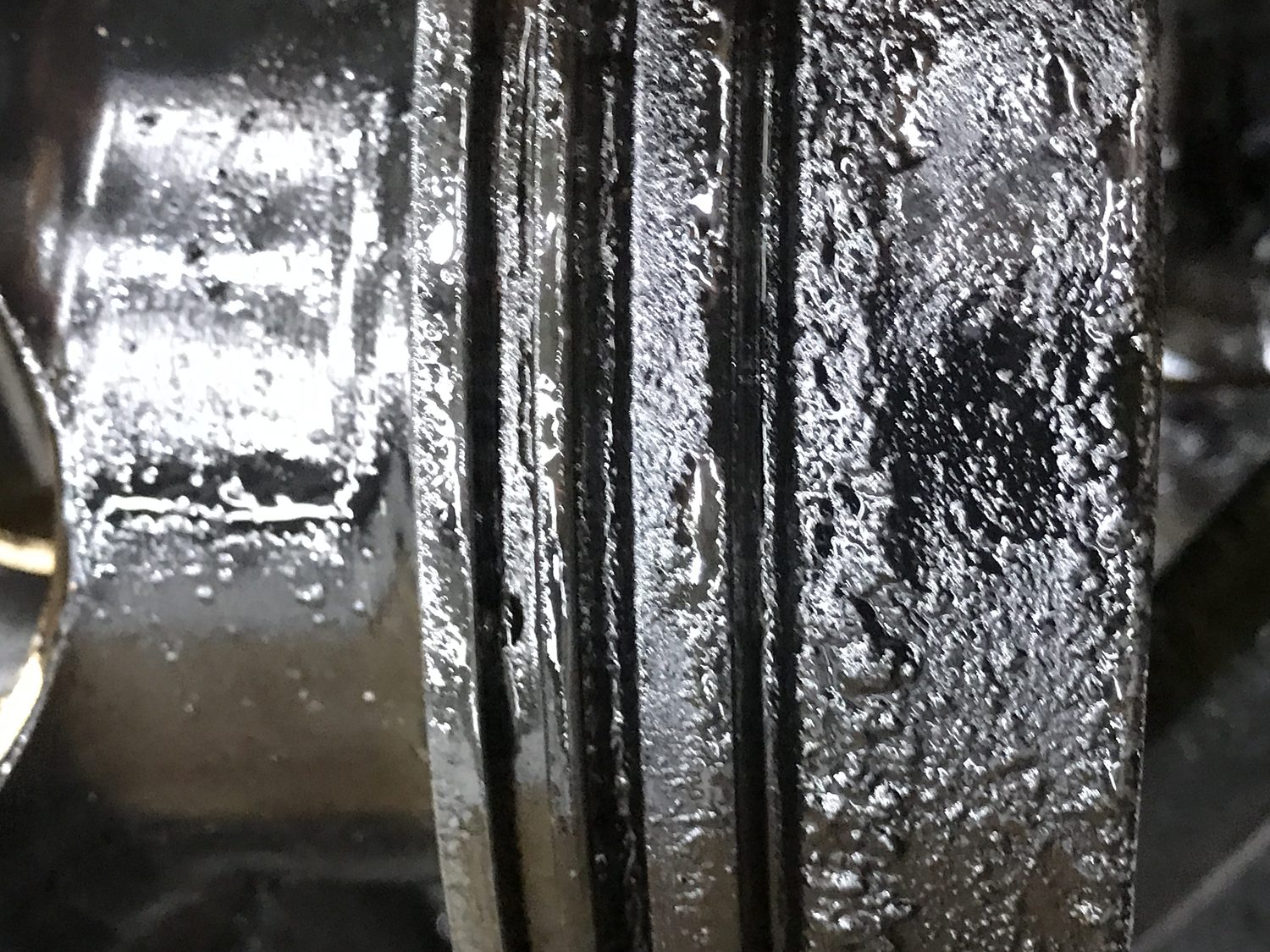

Piston ring belt packed hard with carbon — Ring belt packed hard with carbon — the grooves that decide oil control, and the hardest place to reach by hand.

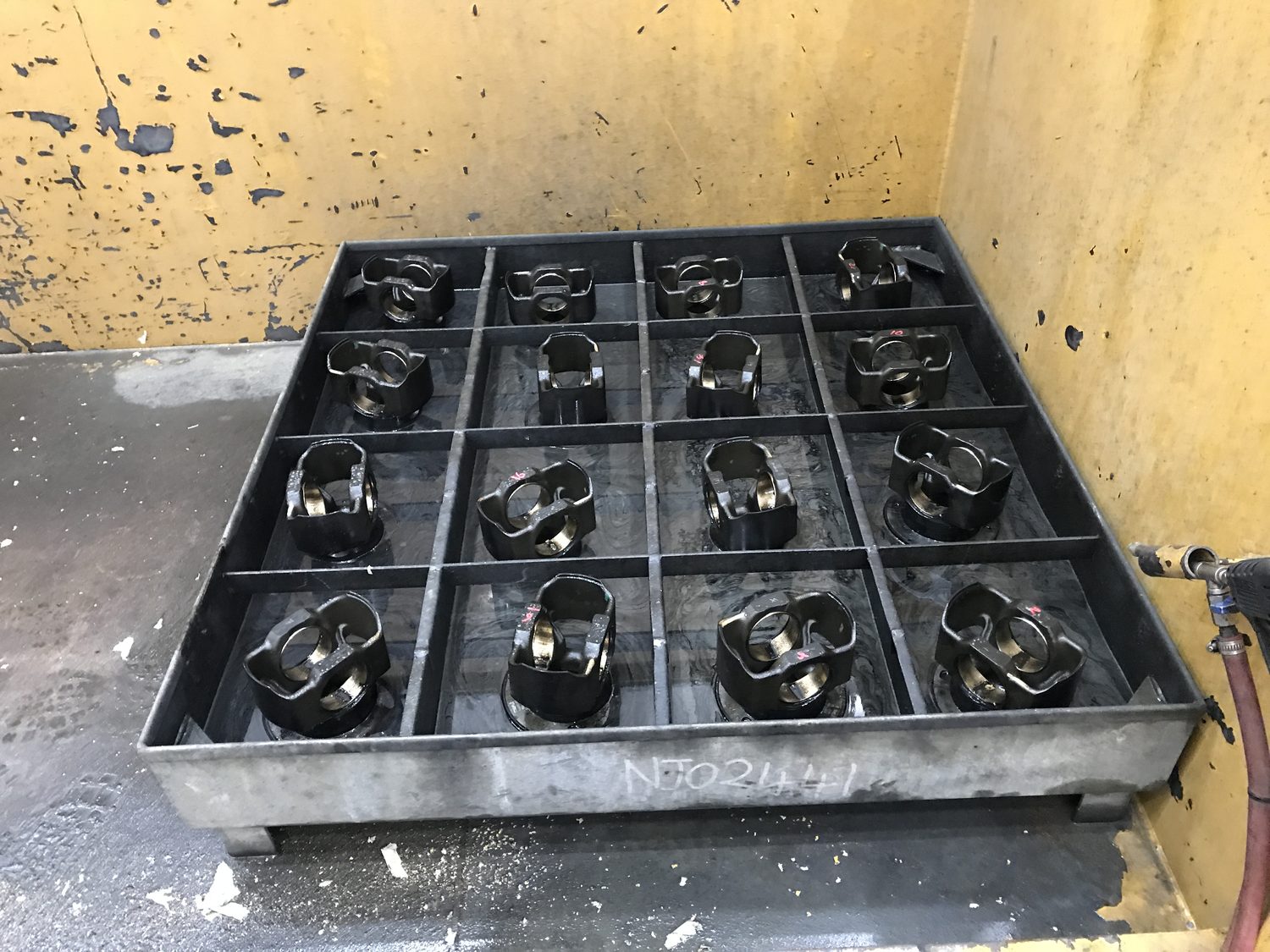

Twelve pistons loaded into a cleaning basket — Twelve pistons in one basket — a full set runs together, so every part sees the same documented cycle.

The results

Water jackets actually clean. The passage network that decides cooling performance is stripped to metal — the result no external method delivers.

One process replaces three. Hot tank, bead blaster and scraping bench collapse into a single documented immersion with no embedded media risk.

Machining-ready surfaces, protected. Blocks come out of the inhibitor dip stable enough to queue for machining without flash rust.

Hours, not days. 1–2 hour cycles turn engine prep from the rebuild bottleneck into a scheduled step.

Hardware and chemistry

Industrial ultrasonic tank sized for engine blocks and heads

Heavy-duty industrial tank

40 kHz industrial tank with weir, filtration and a basket rated for block weights — sized to the largest engine in the program.

The tank for this work: EvoSonic EVS 600 or EVS 800 for blocks and heads — see also the MSX floor range for smaller rebuild parts.

Ask about block-tank sizing →

MetalTek 100 ferrous multi-soil chemistry, 20 litre

Deruster chemistry

High-alkaline rust, carbon and paint stripper for ferrous rebuild work, paired with an anti-rust dip.

Browse the chemistry range →

The rebuild economics: every hour a block spends in prep is an hour the machine shop waits. A documented 1–2 hour strip with jackets included is throughput the hot tank never offered.

Replace the hot tank

One trial block: jackets photographed, cycle documented

Book a block trialSend a worst-case block — see the jackets afterwards Anti-rust protectionThe dip that closes the flash-rust window The process blogWhy rinse and protect are part of the answer

FAQ

Questions about this process

What comes off a block in one immersion?

Rust scale through the water jacket, combustion carbon and baked oil in the galleries, and old paint and bonded gasket material on the faces, in a single alkaline cycle.

How long does it take?

One to two hours total at 70 to 80 degrees C and 40 kHz, in a heavy-duty alkaline deruster at 15 to 20 percent, with 7 percent proven. That replaces a days-long hot-tank soak and the bead blaster.

What stops the bare iron rusting afterwards?

A rust inhibitor dip straight after the hot rinse closes the flash-rust window and holds the ferrous surfaces for machining and inspection.
