Misonics EVS 300 Heavy Industrial Ultrasonic Cleaner

The compact platform machine · heavy industrial · AS3100 certified

300 LSS316L tank
9,000 W6 generators · 25 kHz
700×700platform mm
400 mmplatform stroke
17 kWconnected
Misonics EVS 300 heavy industrial ultrasonic cleaner — front elevation

Machine photography from build, commissioning and site. A dimensioned GA for your build is issued with the proposal.

The compact platform machine
Engineered to site — POA

Quoted as a working system: machine, services check, chemistry, baskets, commissioning and first recipes — one number, ex GST.

Every EVS 300 ships with
  • ✓ Powered elevator platform · manual insulated lid
  • ✓ Weir bath defence per model
  • ✓ Siemens HMI · programmable logged cycles
  • ✓ Remote diagnostics gateway
  • ✓ Insulated SS316L tank · A/C electrical cabinet
  • ✓ AS3100 · 12-month warranty · site commissioning
415 V 3-phase · 12 kW heating · ~17 kW connected
Why this machine

Heavy-range engineering at workshop scale

The 300 is the smallest platform machine in the EvoSonic range: a 700 × 700 mm powered deck with a 400 mm stroke, lifting loads in and out of a 750 × 750 mm SS316L tank. Six generators deliver 9,000 watts peak of 25 kHz at 30 W/L — the highest power density in the range.

Control is a Siemens HMI with programmable cycles, filtration is a 5 µm single-line cartridge on a Lowara pump, and the electrical cabinet is air-conditioned for hot workshops. If parts arrive on a trolley rather than a crane, this is the EvoSonic that fits both the job and the floor.

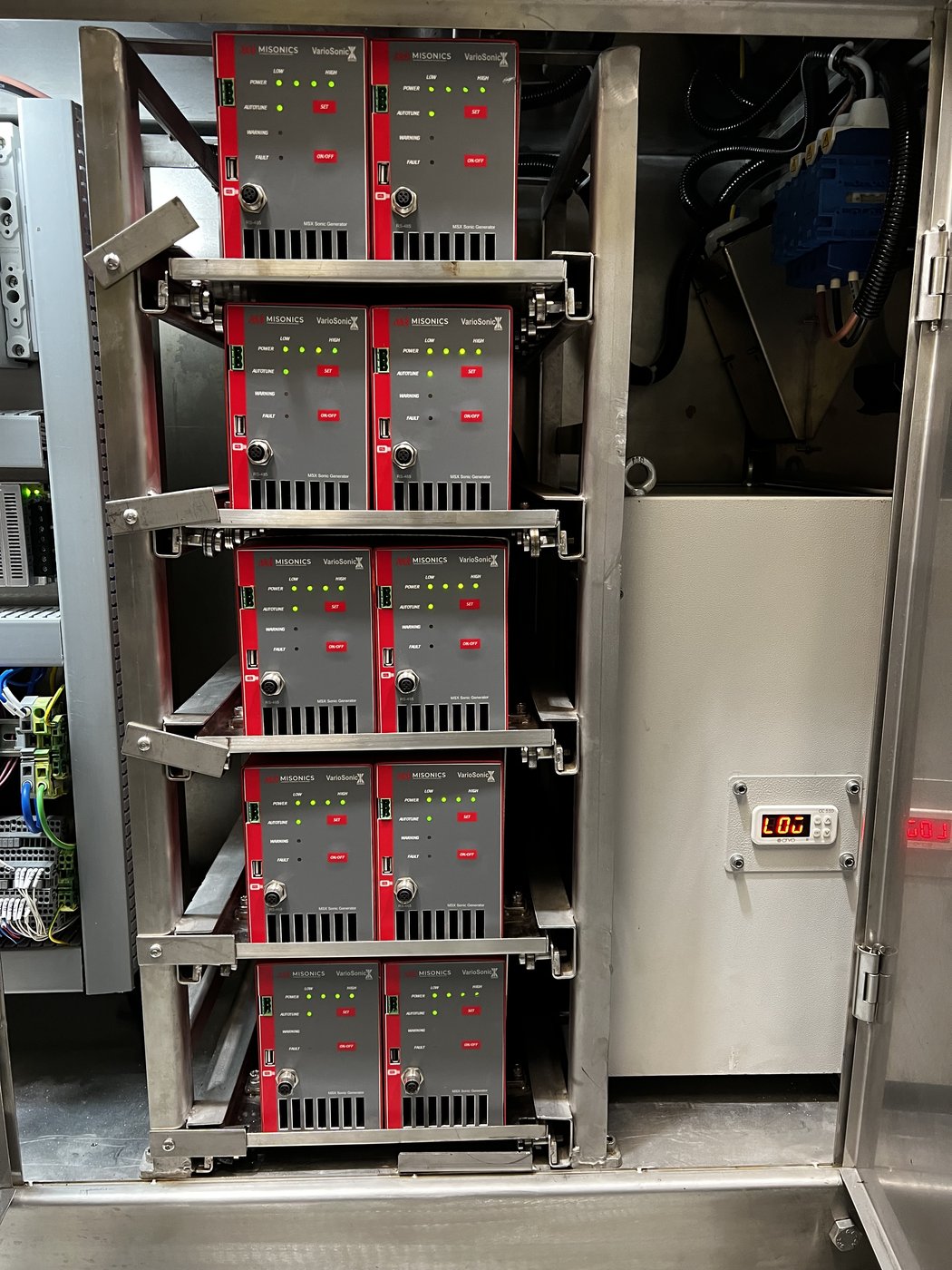

Misonics VarioSonic X sonic generators — the electronics behind the EVS range
The platform, standard

A powered deck — and our own electronics behind it

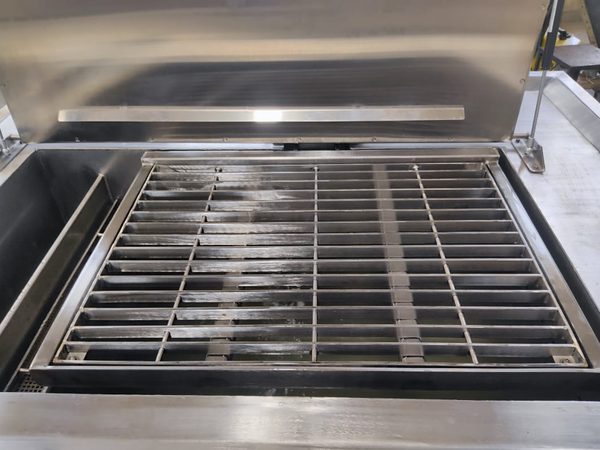

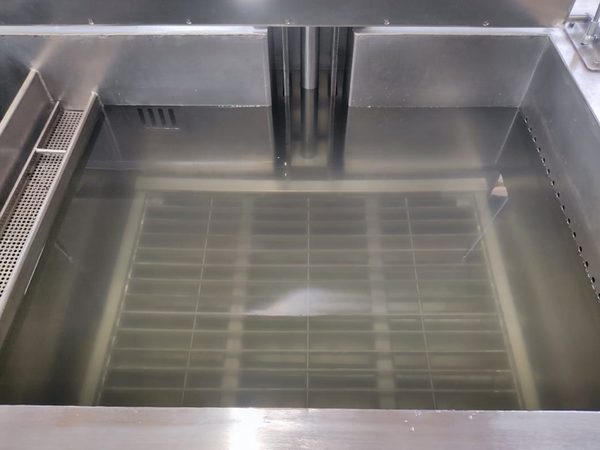

The platform does the immersion: parts load at bench height onto the 700 × 700 mm deck, the up/down mechanism takes them into the bath, and raise-to-drain happens over the tank — no hoist, no wet lifting.

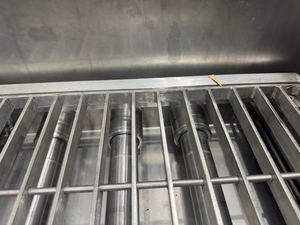

Behind the panel, six Misonics VarioSonic X generator modules drive six side-mounted tube resonators with autotune — the same electronics that power the rest of the EVS range, holding every channel on resonance as load and temperature change.

The lid is manual — the automation budget went into the platform and the ultrasonics, where it earns its keep.

Case studies →  ·  Mining & heavy plant →  ·  Industries →

Applications

What the 300 is bought for

Engine & driveline rebuilders

Blocks, heads and housings at truck scale — the documented one-immersion strip.

Mining & heavy plant

Final drives, cylinders, undercarriage and GET — wash-bay soils at wash-bay scale.

Heat exchangers & cores

Whole-core immersion for bundles and radiators — see the case study.

Energy & power generation

Turbine hardware, filters and exchangers — the sector page covers the duty.

Machine attributes

The attribute set, from the Misonics library

Elevator platform — no liftingElevator platform — no lifting
Stepless power 10–100%Stepless power 10–100%
SweepSweep
DegasDegas
Heating to 80 °CHeating to 80 °C
Level sensingLevel sensing
Displacement weir + oil captureDisplacement weir + oil capture
Ball-valve drainsBall-valve drains
Siemens HMI recipesSiemens HMI recipes
Interlocks & alarmsInterlocks & alarms
Service access + remote diagnosticsService access + remote diagnostics
Programmed cyclesProgrammed cycles

What it does

Why it matters

Drawn from the Misonics machine specification and general arrangement.

Where the EVS 300 sits in the process

Ultrasonics and oscillation covered — the next stages are rinse and dry

Misonics cleaning process stages

The EVS 300 delivers the ultrasonics and oscillation stages. We quote the matching rinse tank and drying stage alongside the machine — see the multistage guide.

Chemistry

Approved chemistry

Chemistry rule: these tanks are approved for the declared chemistry at the declared concentration and temperature. Acid chemistry needs an acid-duty specification. Hydrofluoric acid, hydrochloric acid and pickling solutions are not permitted in the tank; acid processes are only possible by indirect cleaning in a chemically inert secondary container, and only with written Misonics approval.
General degrease

FX Degreaser

The daily bath for oils, grease and workshop soils — 5% in water, works from warm.

Product, SDS & TDS →Ferrous carbon & paint

FerroCarb

The heavy-hitter for baked carbon on steel and iron — the chemistry the SS316L tank was built to hold.

Product, SDS & TDS →Precision & approvals

Brulin AquaVantage 815 GD

Aerospace-approved aqueous for new-manufacture and precision work; 815 QR-NF for MRO carbon.

Product, SDS & TDS →
Specification

Full specification — EVS 300

CAPACITY & DIMENSIONS
Tank Volume Capacity300 L
Tank – Length750 mm
Tank – Width750 mm
Tank – Depth600 mm
Platform (L×W)700 × 700 mm
Platform Stroke400 mm
Overall Unit – Length≈1425 mm
Overall Unit – Width≈1105 mm
Overall Unit – Height≈1645 mm
Tank MaterialSS316L
ULTRASONIC SYSTEM
Ultrasonic Power9,000 W peak (6 × 750/1500 W)
Ultrasonic Power Density30 W/L
Ultrasonic Frequency25 kHz
Multi-FrequencyNo
Number of Generators6
Resonator TypeTube Resonator, side-mounted × 6
Power Adjustable10–100%
Load SensingYes
Degas FunctionYes
Sweep FunctionYes
HEATING SYSTEM
Heating Power12 kW
Heating Voltage415V AC 3-Ph
Temperature RangeAmbient–80 °C
Safety ThermostatYes
Insulated TankYes
FILTRATION & OIL MANAGEMENT
Displacement WeirYes
Interceptor≈150µm Basket
Oil Capture & RemovalYes
Auto-FillNo

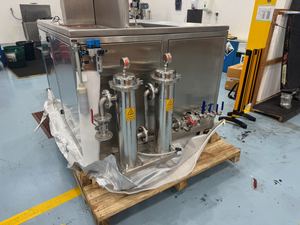

FiltrationSingle-line cartridge, Lowara pump
Filter Rating5 µm

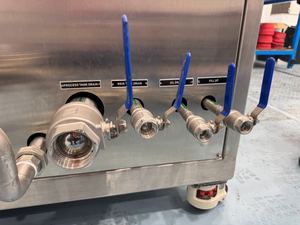

Main Tank Drain≈1" SS Ball Valve
Weir Drain≈1" SS Ball Valve
Oil Drain≈3/4" Ball Valve
CONTROL & SAFETY
Control Panel TypeSiemens HMI / PLC
Programmable CyclesYes
Stored Recipes4
Level Sensors2
Power InterlockOptional
Non-Drip EdgeYes
Lid TypeManual — hinged, insulated
PlatformPowered up/down, 400 mm
Cabinet CoolingAir-conditioned
Remote AccessYes — eWON Cosy
ELECTRICAL & POWER
Power Supply415V / 50Hz / 3-Phase
Wiring Requirements3P+E+N
Power Cable Provided5-core flexible cable c/w 32 A 5-pin plug
Socket Requirement415 V 32 A 5-pin socket
POWER DRAW
Max Power Consumption≈16,500 W
COMPLIANCE & WARRANTY
Machine Warranty12 months
Printed ManualYes
Online ManualYes
Electrical CertificationAS3100

Items marked TBC are being confirmed for publication.

Questions

Before you specify

What does 'heavy industrial' actually buy over the MSX floor range?
Scale and system engineering: multi-generator arrays, PLC/HMI control with logged programmable cycles, remote diagnostics, an elevator platform rated for loads no operator should touch, and factory oil management sized for genuinely dirty duty. An EvoSonic is a small plant, not a bigger tank.
How does loading work on the EVS 300?

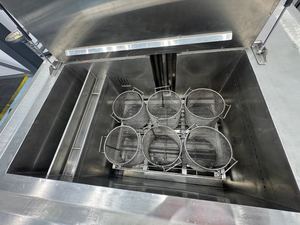

At bench height: the platform rises to the top of the tank, parts load onto the 700 × 700 mm deck, and the up/down mechanism does the immersion and the raise-to-drain. The lid is manual — light, insulated and out of the way. If your loads outgrow the deck, the EVS 600 and 800 are the next steps up in tank.

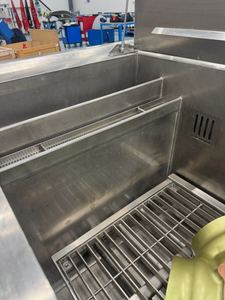

How does the oil management work?
Continuously: the displacement weir takes the surface film, oil capture removes it from circulation, the interceptor catches solids, and stainless filtration polishes the bath — so the solution keeps working for weeks, not days.
What is the remote access for?
An industrial remote-access gateway lets our engineers read the PLC, diagnose faults and adjust parameters over the air — most support calls end without a site visit.
What power and services do these need?
415 V three-phase throughout; connected load runs from ~12 kW at the small end to 136 kW on the EVS 7000. Every quote includes a site-services check before anything ships.
Can they be customised?
Yes — the seven standard sizes cover most duties, and the same engineering delivers custom tanks, platforms and integration when they do not. The TM-series custom builds in our archive are this capability at work.
How do we prove it before committing?
Laboratory trial on your parts first; for production-scale proof we arrange staged commissioning with acceptance testing on your parts. No EvoSonic is bought off a brochure.
What comes with them?
Powered platform, manual insulated lid, 5 µm filtration and weir plumbing, Siemens HMI with recipes, level sensing, site commissioning with chemistry matched and first recipes loaded — AS3100, 12-month warranty.
Specify & price

Specify your EVS 300 — and get it priced

POA is not a brush-off. Tell us the duty and the options, and what comes back is a real number on a real proposal — machine, options, delivery and commissioning to your site.

1 · The options
Configure the machine

Each choice becomes a priced line. Not sure? Pick “advise me” and we size it from your duty.

2 · The duty
What are we cleaning?

This is what makes the price real — the deposit and the throughput decide chemistry, cycle and filtration.

3 · You
Where the proposal goes
An enquiry, not a commitment. Nothing here excludes rights under the Australian Consumer Law.
Misonics EVS 300

300 L · 9,000 W peak at 25 kHz · 750 × 750 mm tank, 600 mm deep · 700 × 700 mm powered platform · 12 kW heating · weir + 5 µm filtration · Siemens HMI

What comes back

  • A priced proposal on paper — the machine plus every option you picked, each as its own line
  • The general arrangement drawing for your configuration
  • Delivered and commissioned to your site — services check, freight and installation in the number
  • Lead time in writing
  • A cleaning trial on your parts before you commit, if you tick it

Need more tank?

The 300 is the compact platform machine. For longer parts and bigger loads the EVS 600 and EVS 800 step up in tank — or build your own EVS.
