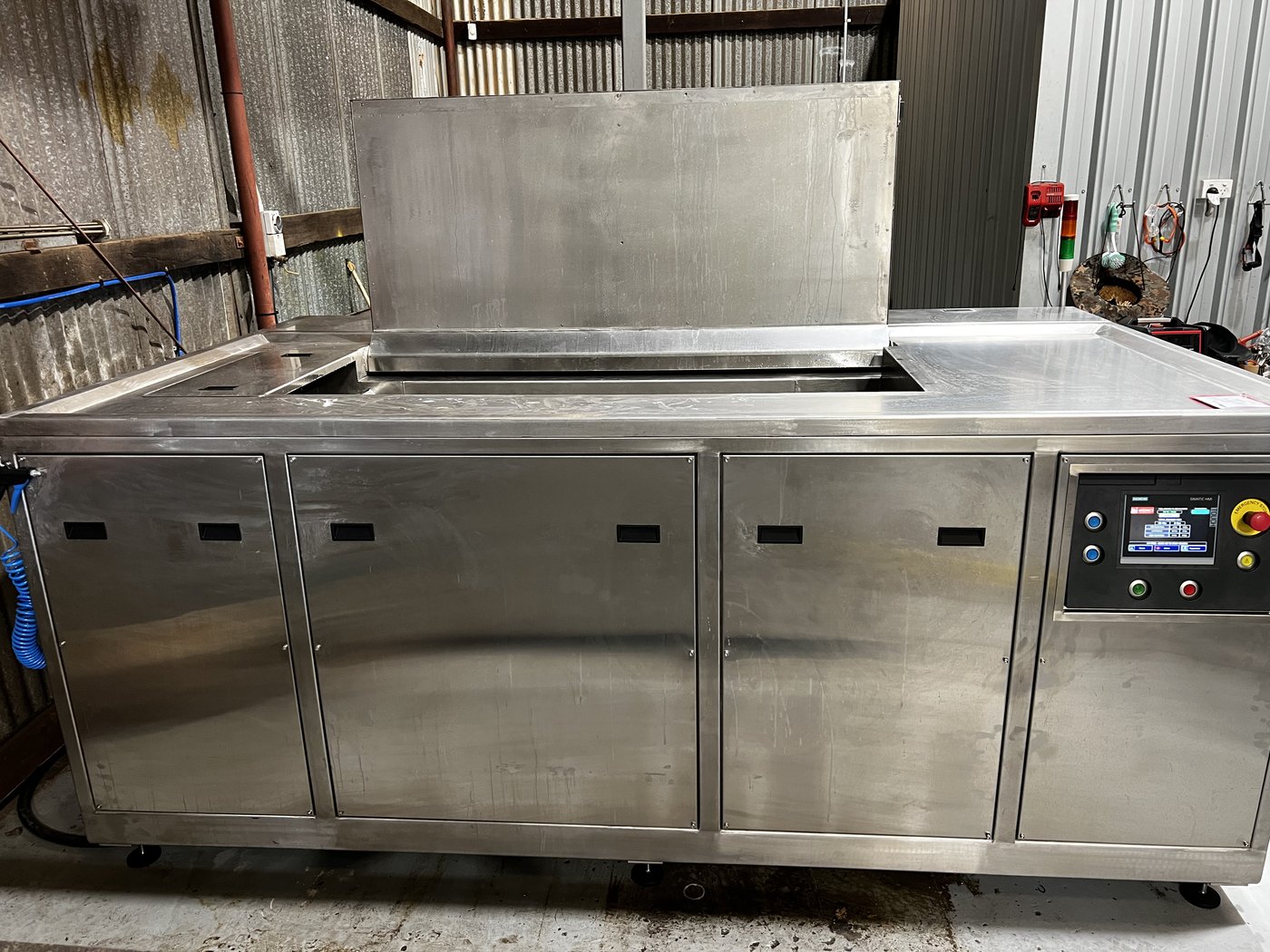

Misonics EVS 800 Ultrasonic Tank
The long-part single chamber · heavy industrial

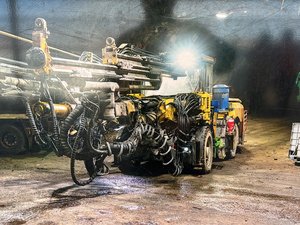

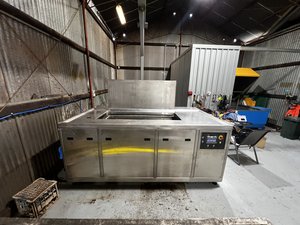

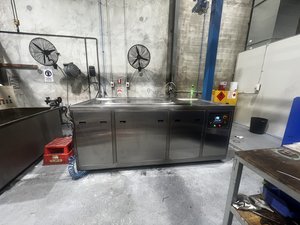

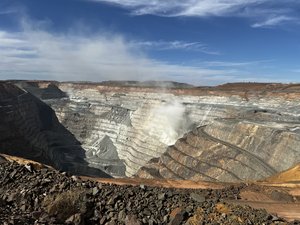

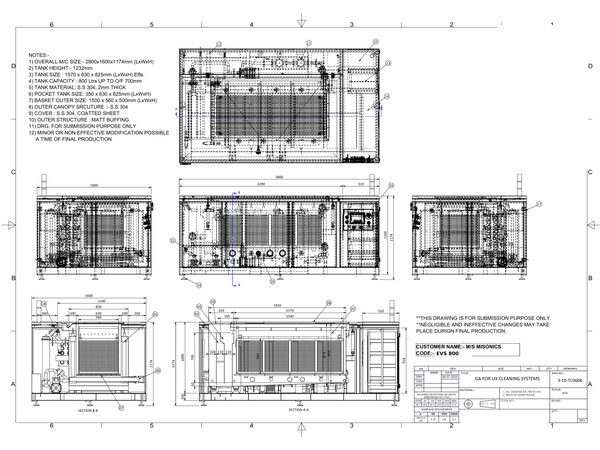

Photographed in service on a mining maintenance site. The general arrangement shows the standard machine — a dimensioned GA for your build is issued with the proposal.
Quoted as a working system: machine, services check, chemistry, baskets, commissioning and first recipes — one number, ex GST.
- ✓ Basket resting frame
- + Options: pneumatic auto lid, filtration
- ✓ Weir bath defence per model
- ✓ PLC/HMI · programmable logged cycles
- ✓ Remote diagnostics gateway
- ✓ Insulated SS304 tank · manual spray gun station
- ✓ 12-month warranty · site commissioning
Full specification — EVS 800
All specifications — incl. dimensions, ultrasonic power and volume — are confirmed at quotation.
Sized and built for heavy contamination
The 800 is built around its tank: a 1500 × 560 mm basket over 700 mm of working depth, sized for shafts, rails, long housings and the awkward loads that monopolise cranes. Ten generators deliver 15,000 watts peak of 25 kHz at 19 W/L, with autotune holding every channel on resonance.
The automated pneumatic lid is optional. Control is IDEC HMI/PLC, and the machine draws 36 kW connected at 415 V three-phase. Built simple as standard: the crane does the lift and the machine does the clean. The lifting platform is available as an option.

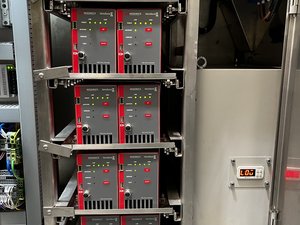

Misonics VarioSonic X generators drive the tank
Ten side-mounted tube resonators, each on its own Misonics VarioSonic X generator with autotune — the module finds and holds the resonant point as bath load and temperature change, so the power you set is the power the parts receive.
Loading is simple and robust: the optional pneumatic lid opens hands-free, the 1500 × 560 mm basket sits on its resting frame in the tank, and a manual spray gun station handles rinse-off at the machine.
Lifting platform optional — the standard 800 keeps it simple, and the price shows it.
What the 800 is bought for
Engine & driveline rebuilders
Blocks, heads and housings at truck scale — the documented one-immersion strip.
Mining & heavy plant
Final drives, cylinders, undercarriage and GET — wash-bay soils at wash-bay scale.
Heat exchangers & cores
Whole-core immersion for bundles and radiators — see the case study.
Energy & power generation
Turbine hardware, filters and exchangers — the sector page covers the duty.
The attribute set, from the Misonics library
Pneumatic auto lid (optional) — hands-free
Stepless power 10–100%
Sweep
Degas
Heating to 80 °C
Level sensing
Displacement weir + oil capture
Ball-valve drains
PLC touchscreen recipes
Interlocks & alarms
Service access + remote diagnostics
Programmed cyclesDrawn from the Misonics machine specification and general arrangement.
Ultrasonics and oscillation covered — the next stages are rinse and dry
The EVS 800 delivers the ultrasonics and oscillation stages. We quote the matching rinse tank and drying stage alongside the machine — see the multistage guide.
Approved chemistry
FX Degreaser
The daily bath for oils, grease and workshop soils — 5% in water, works from warm.
Product, SDS & TDS →Ferrous carbon & paintMetalTek 100
Grease, rust, scale, carbon and paint off steel and cast iron in one bath — the chemistry the heavy-wall SS304 tank was built to hold. pH 14, so ferrous only.
Product, SDS & TDS →Precision & approvalsAquaVantage 815 GD
Aerospace-approved aqueous for new-manufacture and precision work; 815 QR-NF for MRO carbon.
Product, SDS & TDS →Before you specify
What does 'heavy industrial' actually buy over the MSX floor range?
How is the EVS 800 loaded without the lifting platform?
How does the oil management work?
What is the remote access for?
What power and services do these need?
Can they be customised?
How do we prove it before committing?
What comes with them?
Specify and price your EVS 800
POA is not a brush-off. Tell us the duty and the options, and what comes back is a real number on a real proposal — machine, options, delivery and commissioning to your site.
Each choice becomes a priced line. Not sure? Pick “advise me” and we size it from your duty.
This is what makes the price real — the deposit and the throughput decide chemistry, cycle and filtration.
800 L · 15,000 W peak at 25 kHz · 1570 × 630 mm tank, 700 mm working depth · pneumatic auto lid (optional) · 21 kW heating · weir · cartridge filtration optional · IDEC HMI
What comes back
- A priced proposal on paper — the machine plus every option you picked, each as its own line
- The general arrangement drawing for your configuration
- Delivered and commissioned to your site — services check, freight and installation in the number
- Lead time in writing
- A cleaning trial on your parts before you commit, if you tick it
Need powered immersion?
The 800 loads by hoist onto its basket frame — simple and priced accordingly. If your duty needs powered immersion, add the optional lifting platform, or step up to the EVS 1500-PL, or build your own EVS.
Machine, chemistry, process card and commissioning
Integrated work areas
Bunding to catch what comes off the load, a raised grated deck so the work happens at working height, and a screened washbay for the wet work beside the bath.
Built into the machine from the start, or as a separate unit that drops in beside one already on the floor. Quoted as its own line, ex GST.
Bunding, raised platforms and washbays →Items marked “confirmed at quotation” are set out in the engineering pack supplied with your quotation.
Designed, specified and supported by Misonics
Australian-owned and engineered. Built locally and internationally to Misonics drawings, specifications and testing requirements, then supported from Melbourne with parts, service and the people who wrote the process. Sold direct and through our distribution partners.
