Misonics EVS 7000-PL Ultrasonic Tank
The largest standard tank we build · heavy industrial

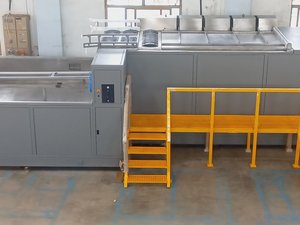

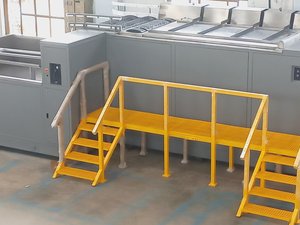

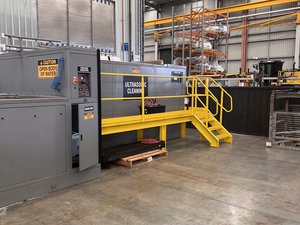

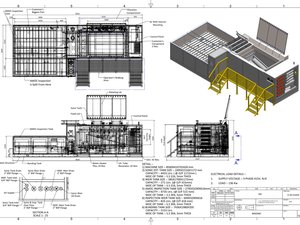

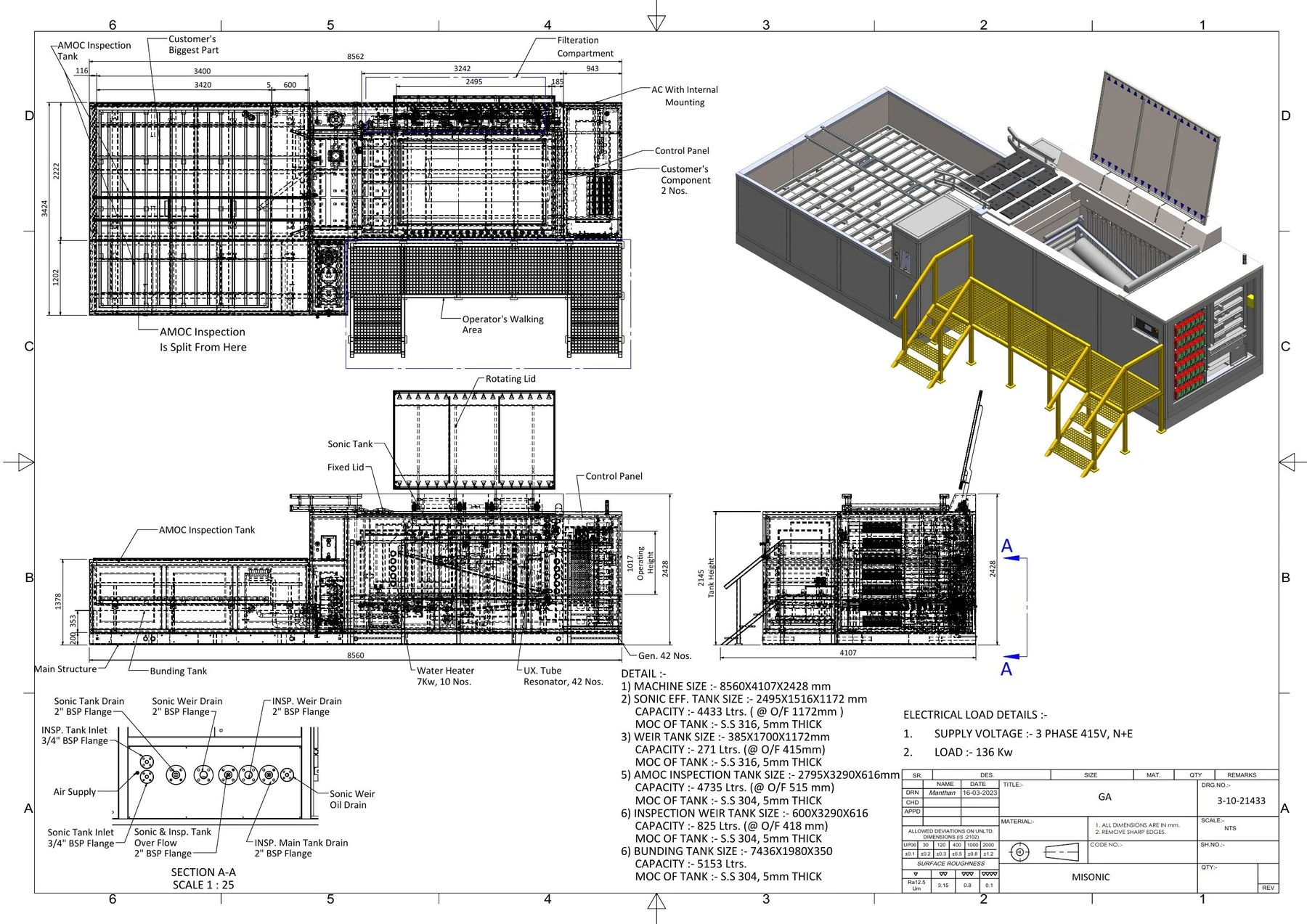

The general arrangement is dimensioned; the machine is photographed on the factory floor and in service. Renders show the current build.
Quoted as a working system: machine, services check, chemistry, baskets, commissioning and first recipes — one number, ex GST.

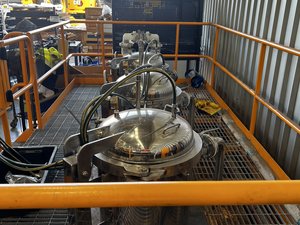

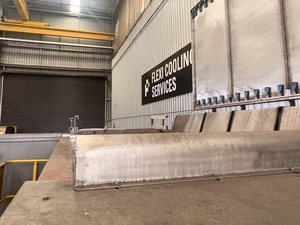

- + Options: lifting platform (with agitation), automated lid, filtration or kidney-loop filtration
- ✓ Weir bath defence per model
- ✓ PLC/HMI · programmable logged cycles
- ✓ Remote diagnostics gateway
- ✓ Insulated SS316 tank
- ✓ 12-month warranty · site commissioning
Full specification — EVS 7000-PL
All specifications — incl. dimensions, ultrasonic power and volume — are confirmed at quotation.
One tonne at a time, safely

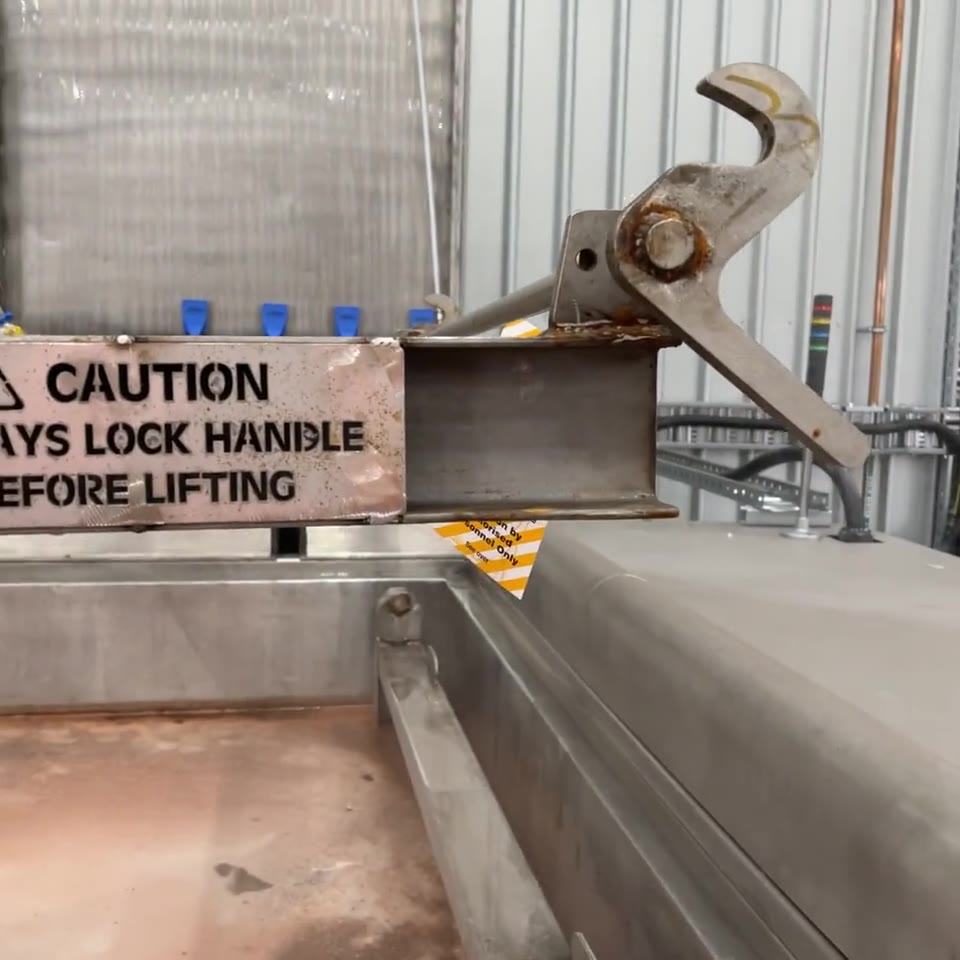

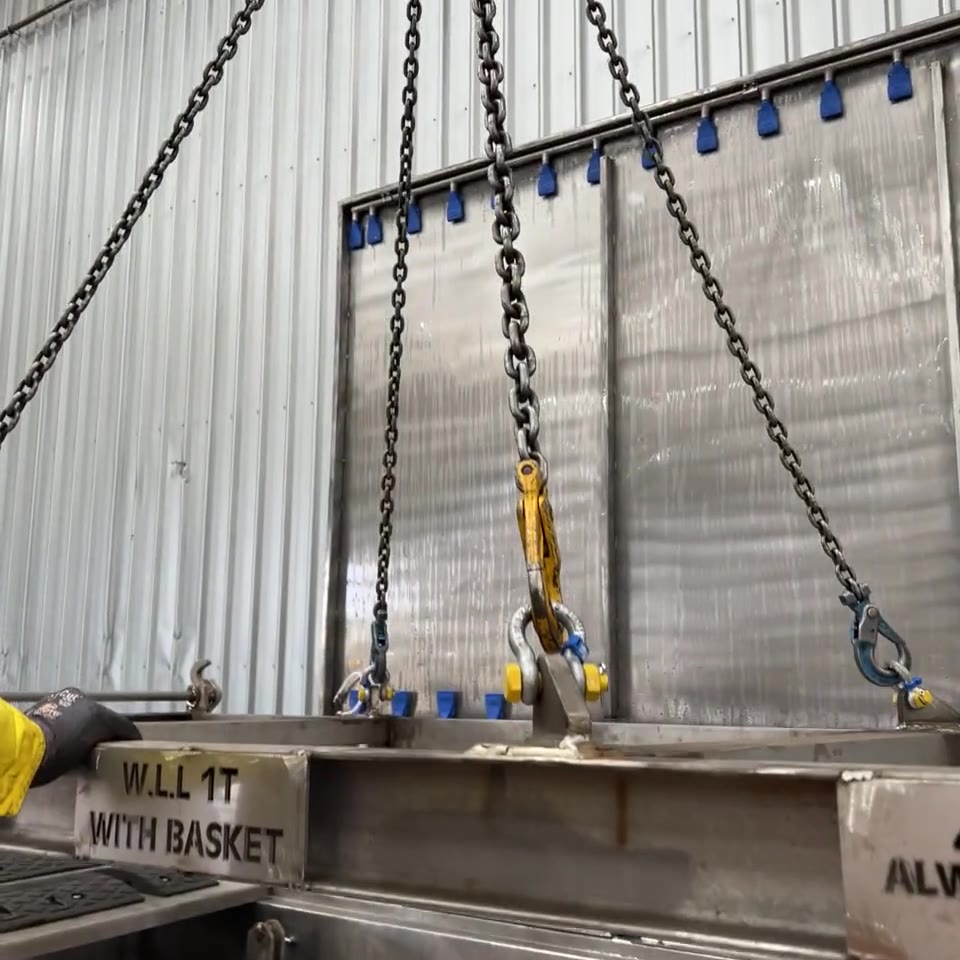

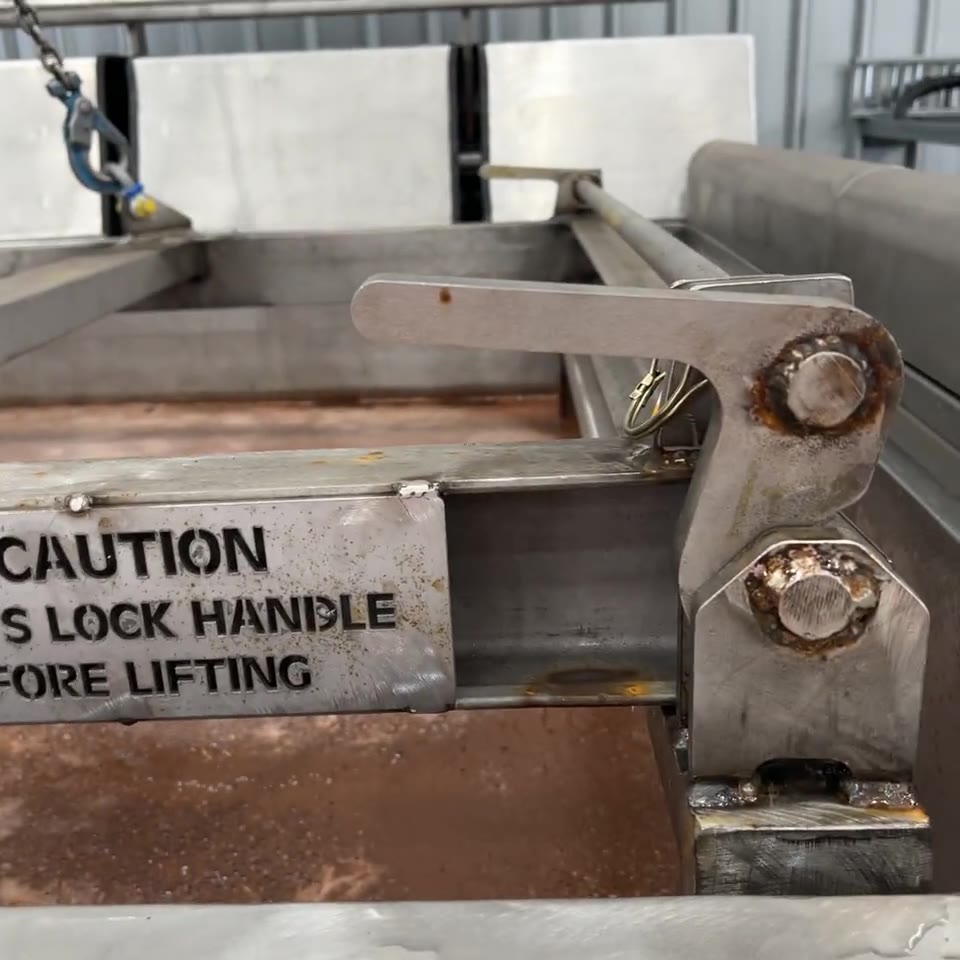

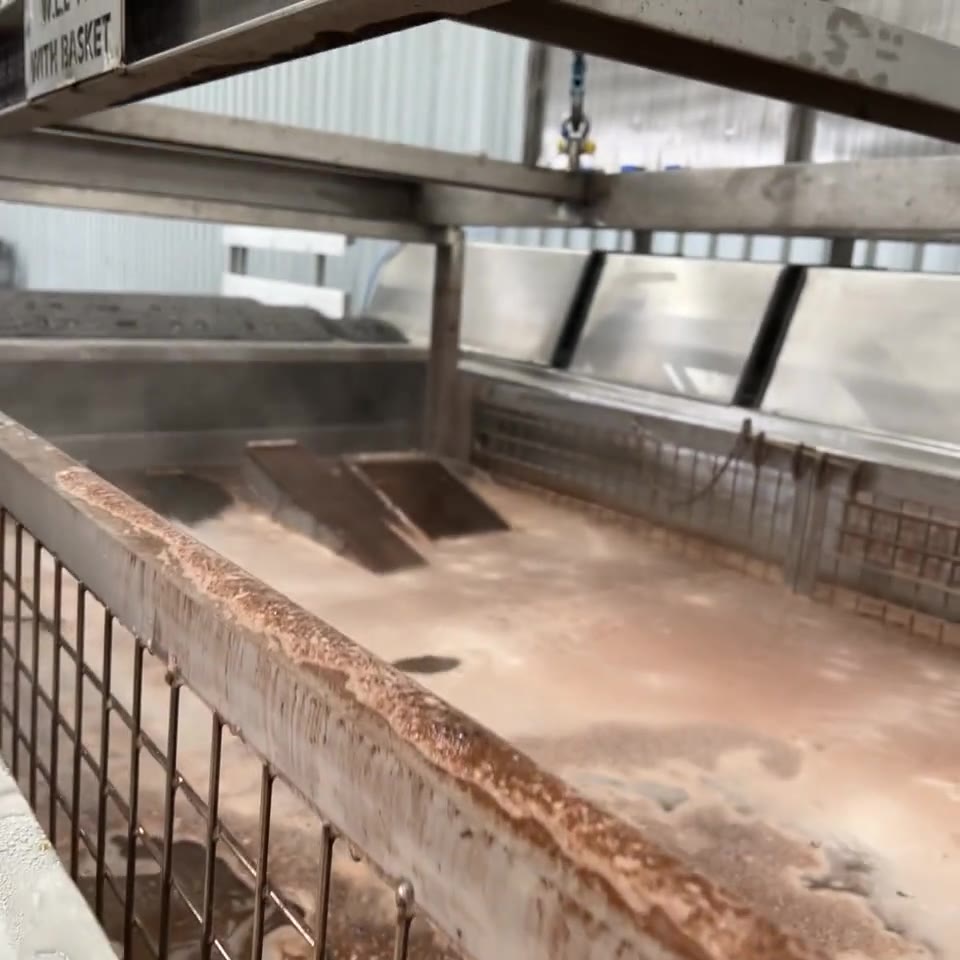

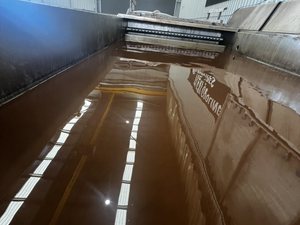

Filmed in service: the 1-tonne basket rigged on its lifting beam, the lock-before-lift handles the operators actually use, and the ultrasonic cleaning tank at work. This is what four and a half thousand litres of heavy duty looks like on a working floor.
Clips are silent and load only when you press play. Filmed on a working installation.
Sized and built for heavy contamination

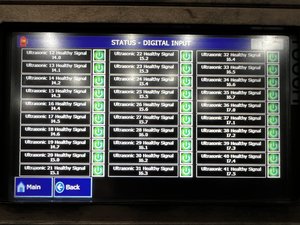

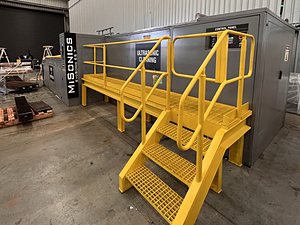

The EVS 7000 is the top of the standard catalogue: nearly four and a half thousand litres in 5 mm SS316, driven by forty-two generators totalling 63,000 watts of 25 kHz. Working depth is 1,172 mm; the connected load is 136 kW; the control system is Siemens TP700 HMI on S7 PLC with the remote-access gateway. Access platforms and stairs are part of the machine.
This is the tank for heat-exchanger bundles, large fabrications, rail and power-generation hardware — the work photographed in our archive on skids and inspection tables. Beyond it, the same engineering goes fully custom: the TM-series builds in our records went bigger still.
The optional elevator platform changes how this machine gets loaded
In most factories, lifting a heavy basket into a tank means booking the overhead crane — the most fought-over asset in the building. The optional EVS platform ends that: parts go on by trolley, forklift or hand at deck height, the platform lowers them into the bath, and the crane goes back to jobs only a crane can do.
It cleans better — with agitation the platform works the load through the field — and it manages parts better: raise to drain, let drag-out run back, unload on the operator's schedule, not the hoist's.
The platform is an option. Without it, the load goes in by hoist or crane.
Case studies → · Industries we serve → · See the platform working on the EVS 1500 page →
What the 7000 is bought for
Engine & driveline rebuilders
Blocks, heads and housings at truck scale — the documented one-immersion strip.
Mining & heavy plant
Final drives, cylinders, undercarriage and GET — wash-bay soils at wash-bay scale.

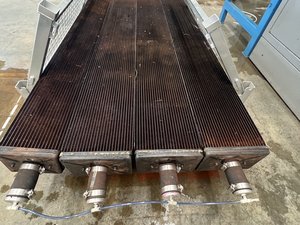

Heat exchangers & cores
Whole-core immersion for bundles and radiators — see the case study.
Energy & power generation
Turbine hardware, filters and exchangers — the sector page covers the duty.
The attribute set, from the Misonics library
Elevator platform (optional) — no lifting
Stepless power 10–100%
Sweep
Degas
Heating to 80 °C
Level sensing

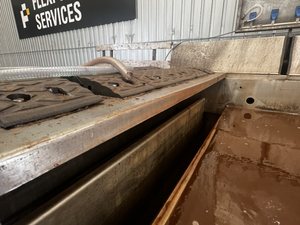

Displacement weir + oil capture
Ball-valve drains
PLC touchscreen recipes
Interlocks & alarms
Service access + remote diagnostics
Programmed cyclesDrawn from the Misonics operating manual and machine specification.
Ultrasonics and oscillation covered — the next stages are rinse and dry
The EVS 7000-PL delivers the ultrasonics and oscillation stages. We quote the matching rinse tank and drying stage alongside the machine — see the multistage guide.
Approved chemistry
FX Degreaser
The daily bath for oils, grease and workshop soils — 5% in water, works from warm.
Product, SDS & TDS →Ferrous carbon & paintMetalTek 100
Grease, rust, scale, carbon and paint off steel and cast iron in one bath — the chemistry the 1.5 mm SS316 tank was built to hold. pH 14, so ferrous only.
Product, SDS & TDS →Precision & approvalsAquaVantage 815 GD
Aerospace-approved aqueous for new-manufacture and precision work; 815 QR-NF for MRO carbon.
Product, SDS & TDS →Before you specify
What does 'heavy industrial' actually buy over the MSX floor range?
What is the agitating platform option?
How does the oil management work?
What is the remote access for?
What power and services do these need?
Can they be customised?
How do we prove it before committing?
What comes with them?
Specify and price your EVS 7000-PL
POA is not a brush-off. Tell us the duty and the options, and what comes back is a real number on a real proposal — machine, options, delivery and commissioning to your site.
Each choice becomes a priced line. Not sure? Pick “advise me” and we size it from your duty.
This is what makes the price real — the deposit and the throughput decide chemistry, cycle and filtration.
4,433 L · 63,000 W at 25 kHz · 42 generators · 2495 × 1516 mm opening, 1,172 mm working depth · 70 kW heating · Siemens PLC/HMI + remote gateway
What comes back
- A priced proposal on paper — the machine plus every option you picked, each as its own line
- The general arrangement drawing for your configuration
- Delivered and commissioned to your site — services check, freight and installation in the number
- Lead time in writing
- A cleaning trial on your parts before you commit, if you tick it
See the platform in service
The same elevator-platform system is on video, working a live trial, on the EVS 1500-PL page. Between sizes or past them? Build your own EVS.
Machine, chemistry, process card and commissioning
Integrated work areas
Bunding to catch what comes off the load, a raised grated deck so the work happens at working height, and a screened washbay for the wet work beside the bath.
Built into the machine from the start, or as a separate unit that drops in beside one already on the floor. Quoted as its own line, ex GST.
Bunding, raised platforms and washbays →Designed, specified and supported by Misonics
Australian-owned and engineered. Built locally and internationally to Misonics drawings, specifications and testing requirements, then supported from Melbourne with parts, service and the people who wrote the process. Sold direct and through our distribution partners.
Filter element cleaning — recovered, not replaced
Pall pleated stainless mesh candle elements, blinded solid with carbonised residue, cleaned through the full depth of the pleat pack and put back in the housing. One hour, one bath, nothing mechanical near the mesh.
