Insights · Case Studies

CHP spark plugs: up to +67% service life from a bench-top machine

Q: What fouls biogas CHP spark plugs?

Combustion deposits from lean-burn running and siloxane ash, which burns to a glassy abrasive deposit inside the pre-chamber and transfer bores where no brush reaches.

Q: What did ultrasonic recovery do to plug life?

Service life went from 6,000 hours to 8,000 to 10,000 hours, up to 67 percent more, on plug sets that cost thousands of dollars.

Q: What machine does it need?

A bench-top MSX 30 with a plug-safe aqueous detergent, a rinse and a dry, with gap and resistance checked before the plugs go back. The machine paid for itself inside a year.

How scheduled ultrasonic recovery on an MSX30 stretched $8,000 plug sets from 6,000 to 10,000 hours in biogas CHP service.

5 min readBy Misonics application engineers

Biogas CHP spark plug sets cost thousands of dollars and foul on schedule — the impurities in biogas see to that. This application study documents how ultrasonic recovery on a bench-top MSX30 extended plug service life from 6,000 to 8,000–10,000 hours and paid for the machine inside a year.

Industry

Biogas · CHP · power generation

Component

Pre-chamber spark plugs (Jenbacher J-series, MWM TCG class engines)

Contamination

Combustion deposits · siloxane ash · fouling

Machine

Misonics MSX30 bench ultrasonic

Chemistry

Outcome

Up to +67% service life · <12 month payback

The contamination

Combustion deposits

Biogas is not a clean fuel: lean-burn combustion leaves progressive deposits on electrodes and pre-chamber passages that degrade ignition quality, output and emissions.

Siloxane and mineral ash

Trace siloxanes in digester and landfill gas burn to abrasive glassy ash — the deposit that ends plug life early and resists every workshop brush.

The geometry problem

Pre-chamber plugs foul inside the chamber and its transfer bores — exactly where no mechanical cleaning reaches and where cavitation works at full strength.

The process

Process diagram

Parameter	Value
Machine	Misonics MSX30 bench-top ultrasonic
Chemistry	Plug-safe aqueous detergent
Cycle	Established per application
Verification	Visual + electrode gap and insulator check before return to service

Before and after

Pre-chamber plug off a biogas CHP engine — fouled electrodes and deposit through the chamber ports.

The same plug after ultrasonic recovery — electrodes and ports cleared, returned to service.

The results

Service life up to +67%. Plug sets that previously retired at 6,000 hours now run 8,000–10,000 hours with scheduled ultrasonic recovery.

Machine payback under 12 months. Against spark plug sets costing $8,000+ per engine, the MSX30 recovered its price within the first year.

Ignition quality maintained. Recovered plugs restore combustion stability, output and emissions behaviour between replacements.

A maintenance routine, not a rescue. Recovery is scheduled into service intervals — plugs are cleaned on rotation, not when the engine complains.

Hardware and chemistry

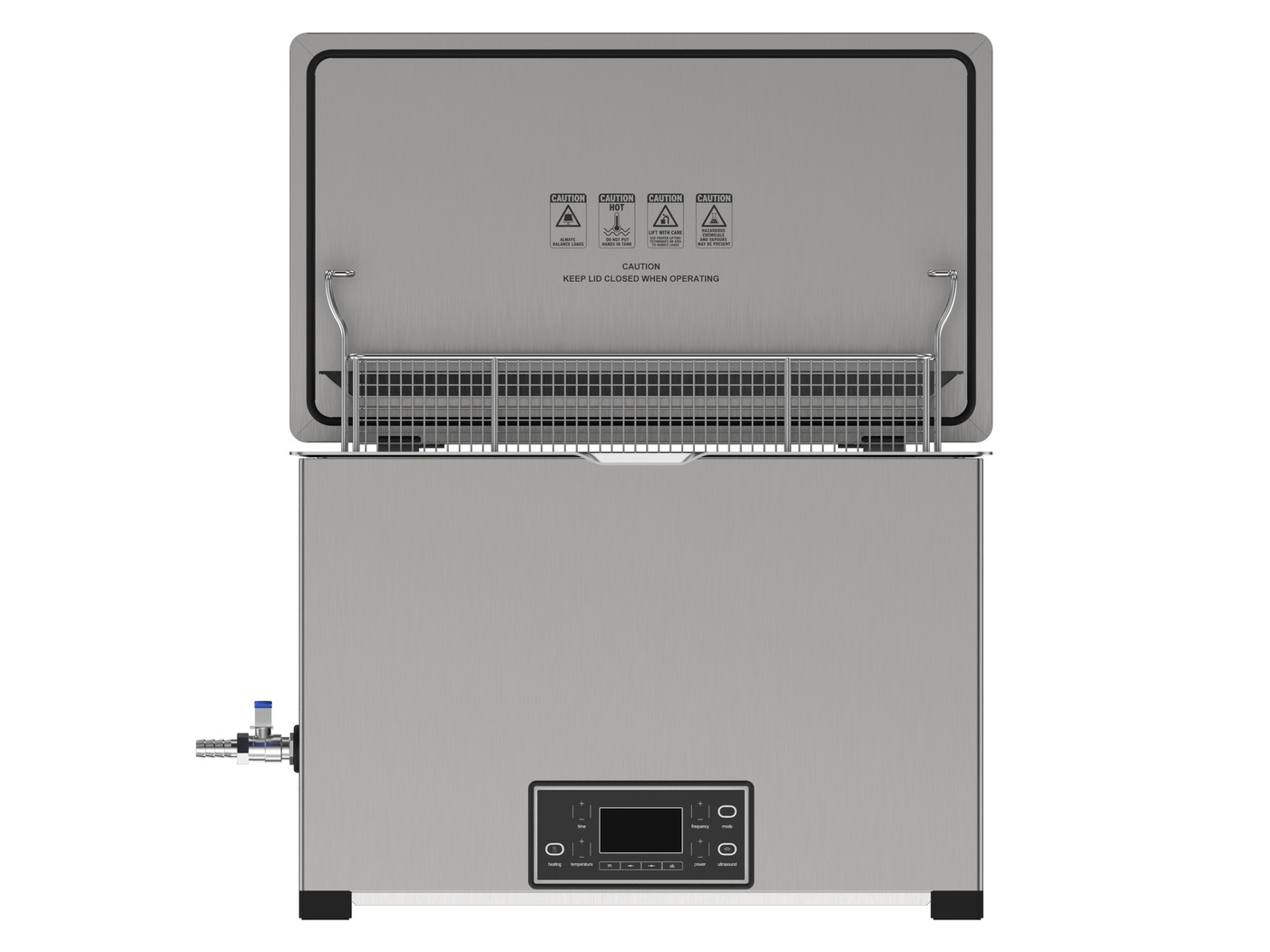

Misonics MSX30

The bench-top workhorse of the MSX family — the right size for a plug rotation program in any CHP plant workshop.

See the MSX 30 →

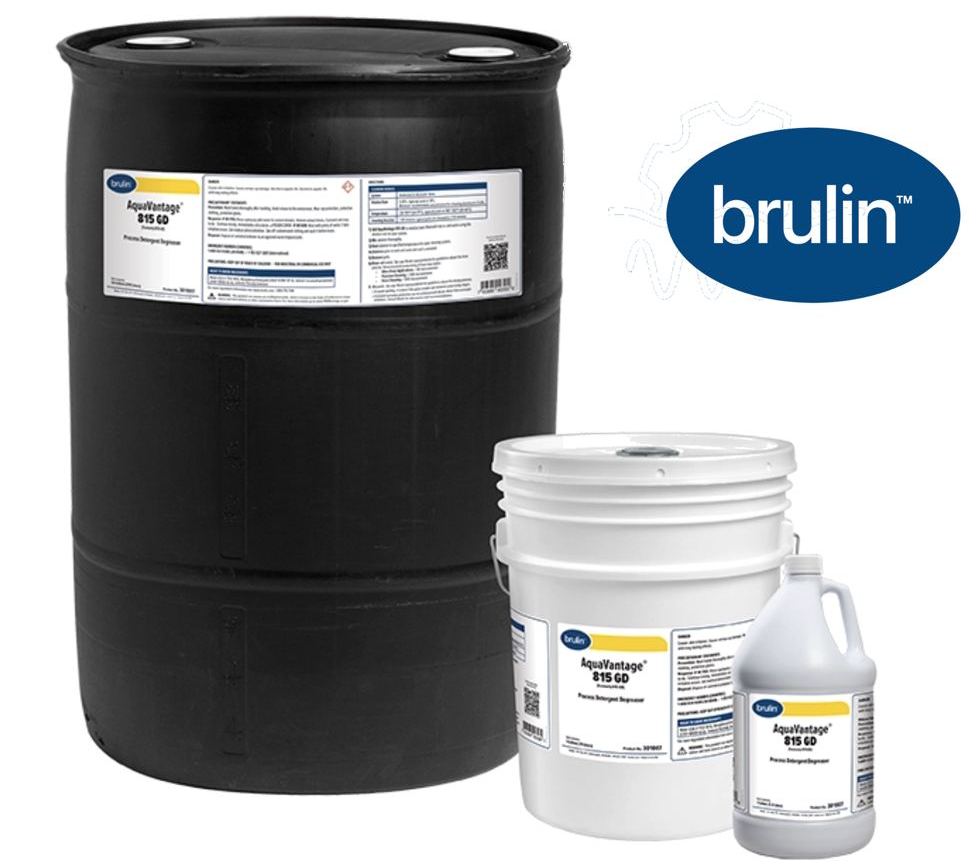

Aqueous detergent range specified at quotation

Cleaning chemistry

A plug-safe aqueous detergent — dissolves combustion deposits without attacking plating or insulator.

Browse the chemistry range →

The arithmetic sells itself. One plug set per engine per year not purchased pays for the machine; every set after that is margin. The same recovery logic applies to injectors, valves and pre-combustion hardware across a gas-engine fleet.

Put a recovery bench in your plant

The program: one bench-top machine, one rotation schedule

Book a cleaning trialSend a fouled plug set — see the recovery before you buy anything MSX bench rangeFrom single-plug benches to workshop stations Blind holes & galleries guideWhy cavitation cleans pre-chambers nothing else reaches

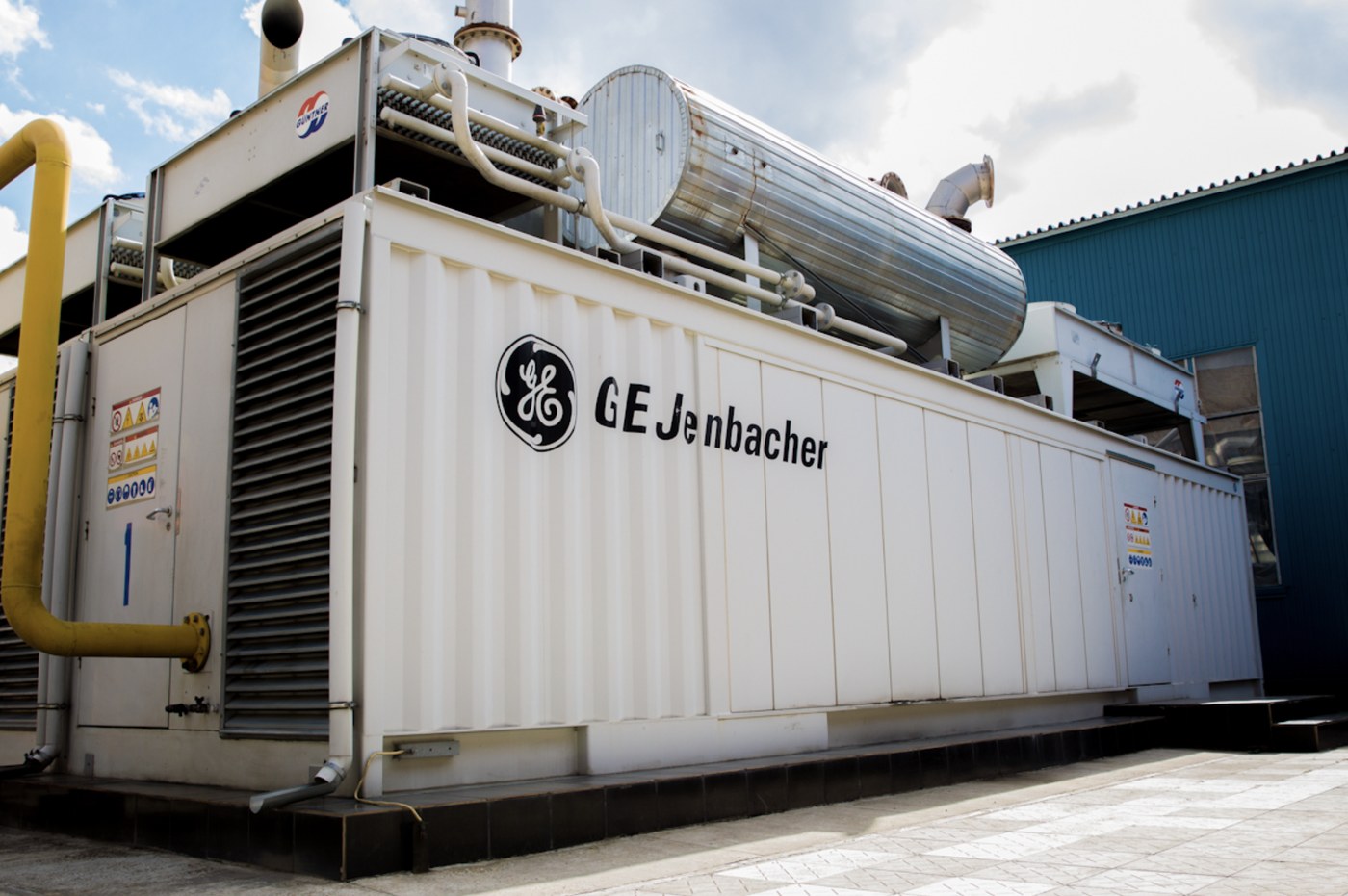

Banner photograph: General Electric Jenbacher J320GS by DmitryFadeev, licensed under CC BY-SA 4.0, via Wikimedia Commons.
