A meat plant’s wash-room: immersion cleaning at audit standard

The CM-800 custom-built installation taking racks, saw components and smallgoods equipment through a staged ultrasonic clean — photographed in service.

5 min readBy Misonics application engineers

A meat processing plant runs on equipment that must be genuinely clean — not visually clean — on a schedule that never pauses. This study documents a custom-built industrial ultrasonic installation (CM-800) taking racks, trays, saw components and smallgoods equipment through a staged clean at food-plant standard.

Industry
Food processing · protein
Components
Racks, trays, saw parts, smallgoods equipment
Contamination
Fats · proteins · carbonised residue · biofilm risk
Machine
CM-800-class industrial system
Chemistry
Food-plant approved alkaline
Standard
Export-plant hygiene requirements

The contamination

Animal fats and proteins

The daily load — films that harden with temperature cycles and shield bacteria from sanitisers if they survive the wash. Saponifying alkaline chemistry territory.

Carbonised residue

Ovens, smokehouse racks and cookers bake fats to carbon that pressure washing polishes rather than removes.

The hygiene standard

In an export-registered plant, "looks clean" is not a standard. Equipment must be cleanable to audit, on schedule, every day — which is a process argument, not a labour argument.

The process

Process diagram
LOADparts in basketSTAGE 1 · SONIC WASHUltrasonic immersionhot alkaline chemistryfats saponified, carbon liftedracks & fixtures immersed wholeSTAGE 2 · RINSEHot rinsechemistry & freed soilflushed to drainSTAGE 3 · SANITISESanitiser stageapplied to clean surfaces —where it can actually workSTAGE 4 · DRY / RETURNDrain & returnequipment back inrotation same shiftRESULTverified & loggedWhole assemblies immerse — mesh, hinges, welds and corners clean together, the geometry pressure washing never finishes.
ParameterValue
SystemCM-800-class industrial ultrasonic
ChemistryFood-plant approved alkaline detergent
CycleEstablished per application
IntegrationSized into the plant wash-down schedule; equipment returns within shift
VerificationPlant hygiene audit program

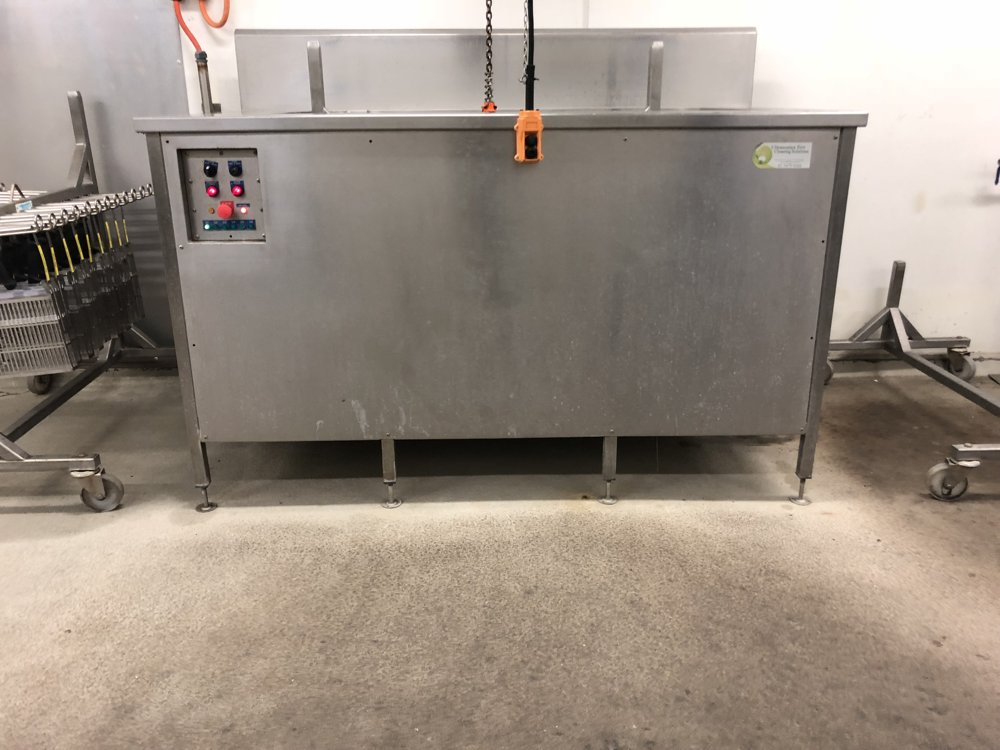

INSTALLEDThe industrial ultrasonic system installed at the plant — stainless construction for wash-down environment.
The industrial ultrasonic system installed at the plant — stainless construction for wash-down environment.
IN SERVICEProduct racks through the ultrasonic cycle — mesh and corners clean without hand scrubbing.
Product racks through the ultrasonic cycle — mesh and corners clean without hand scrubbing.

The results

Audit-standard cleanliness on schedule. Immersion cleaning reaches the mesh, hinges and weld seams that fail swab tests after manual washing.
Labour redeployed. The scrubbing crew becomes a loading crew — hours per shift return to production tasks.
Equipment life extended. No more aggressive manual scraping and pressure-lance damage to coated and welded surfaces.
Sanitiser that works. Sanitising chemistry applied to genuinely clean surfaces performs as specified — the step most plants unknowingly waste.

Hardware and chemistry

CM-800-class stainless industrial system in the plant.
CM-800-class stainless industrial system in the plant.

CM-series custom-built systems

Stainless-built industrial ultrasonics engineered for food-plant wash-down environments, sized from single tanks to staged lines.

Ask about food-plant systems →
Food-plant approved chemistry range

Food-plant chemistry

Approved alkaline detergents for fats, proteins and carbonised residue in registered plants.

Browse the chemistry range →
The plant-manager arithmetic: the system earns its keep in labour alone — the audit outcomes, equipment life and sanitiser efficacy come free on top.
Bring immersion cleaning into the plant

From a trial rack to a wash-room installation.

Book a plant trialSend your worst rack — see it after one cycleFood & beverage industry pageThe wider hygiene-critical setMultistage cleaningThe staged architecture behind the install
FAQ

Questions about this process

What does the installation clean?
Racks, trays, saw components and smallgoods equipment, immersed whole, through a staged ultrasonic wash, hot rinse, sanitiser stage and return, on a CM-800-class custom-built system.
What is the standard it has to meet?
Export-plant hygiene. In an export-registered plant, looks clean is not a standard; equipment has to be cleanable to audit, on schedule, every day.
Why ultrasonics rather than pressure washing?
Smokehouse racks and cookers bake fats to carbon that pressure washing polishes rather than removes. Hot alkaline chemistry saponifies the fat and cavitation lifts the carbon, so the sanitiser is applied to a surface where it can work.
